Quantum 110 CL Case IH Quantum 110 CL Specifications & Technical Data (2017—2021)

The Case IH Quantum 110 CL is a 4-wheel drive tractor manufactured from 2017 to 2021. It has a weight of 2.652 tons and is powered…

The Case IH Quantum 110 CL is a 4-wheel drive tractor manufactured from 2017 to 2021. It has a weight of 2.652 tons and is powered by an engine with a capacity of 79 kW. The tractor can travel at a speed of 40 km/h and has a transport width of 1.44 meters and a transport height of 2.45 meters. It is equipped with special equipment such as air conditioning and a cabin.

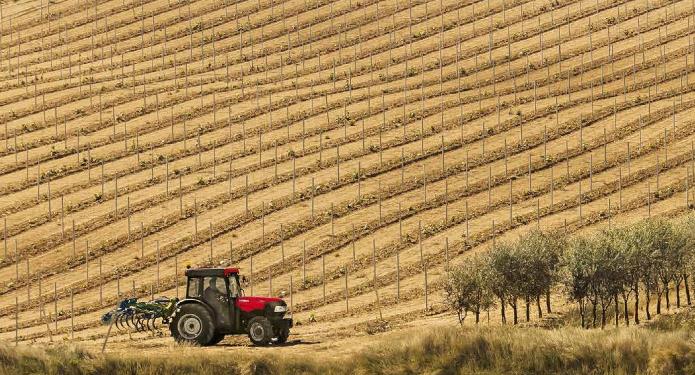

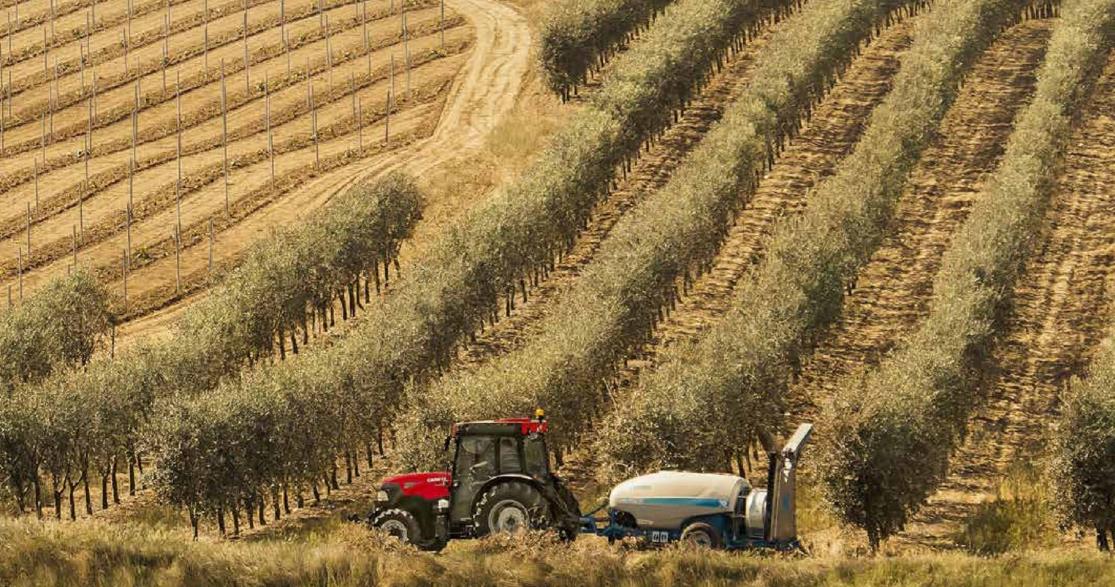

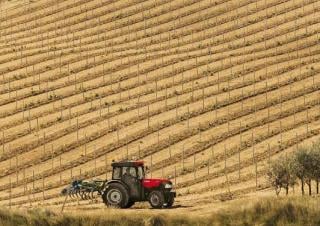

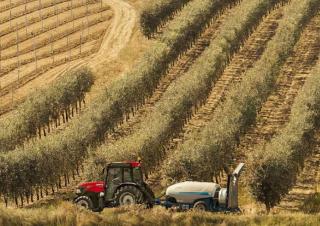

4WD Tractors Case IH Quantum 110 CL
4WD Tractors Case IH Quantum 110 CL
4WD Tractors Case IH Quantum 110 CL
4WD Tractors Case IH Quantum 110 CL
4WD Tractors Case IH Quantum 110 CL
4WD Tractors Case IH Quantum 110 CL

Technical specs - Quantum 110 CL Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
79 kW
Model series
Quantum
Back tyres
480/70 R28
Front tyres
360/70 R20
Transport width
1.44 m
Transport height
2.45 m
Travel speed
40 km/h
Transmission
16/16
Transmission type
m
Weight
2.652 t
Control unit
-/4 ew/dw
Steering
h
three point category
2
Engine manuf.
FPT
Engine type
F5C
Displacement
3.4 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
IV

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
Yes

Download datasheets (PDF)

Case IH Quantum 110 CL FAQ

When was the Case IH Quantum 110 CL manufactured?

The Case IH Quantum 110 CL was manufactured from 2017 to 2021.

What is the weight of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a weight of 2.65 tonnes.

What are the physical dimensions of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a transport width of 1.44 meters and a transport height of 2.45 meters.

What is the engine power of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has an engine power of 79 kW.

What is the travel speed of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a travel speed of 40 km/h.

What are the drivetrain and propulsion system specifications of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a mechanical transmission with 16 forward and 16 reverse speeds.

What type of steering does the Case IH Quantum 110 CL have?

The Case IH Quantum 110 CL has hydraulic steering.

What are the wheel and tyre specifications for the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has front tyres sized 360/70 R20 and back tyres sized 480/70 R28.

What is the three-point hitch category of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a category 2 three-point hitch.

How much is a Case IH Quantum 110 CL 4WD Tractor (2017u20132021) worth?

The residual value of the Case IH Quantum 110 CL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
