    Lectura specs Agricultural machinery 4WD Tractors 4WD Tractors Case IH Case IH Magnum 310 specifications

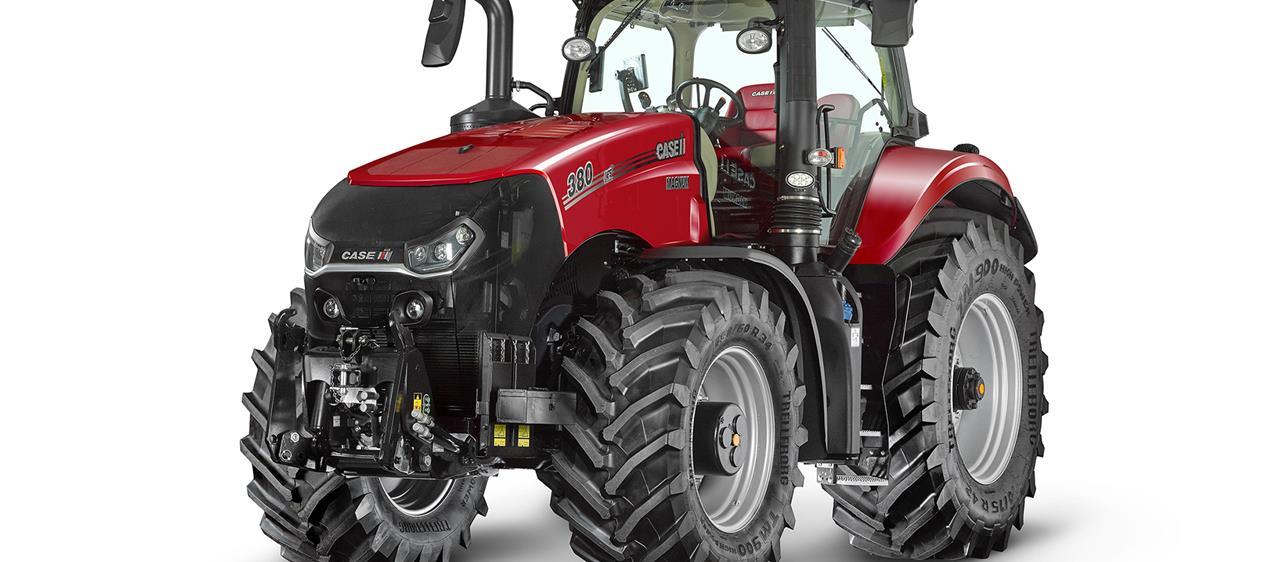

    Case IH Magnum 310 Specifications & Technical Data (2020-2021)

    Rate this machine now!

    Engine power: 255kW – Back tyres: 710/70 R42 – Front tyres: 600/70 R30 – Transport length: 6.575m – Transport width: 2.75m – Transport height: 3.375m

    Technical specs - Magnum 310 Case IH

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Engine power 255 kW
    Back tyres 710/70 R42
    Front tyres 600/70 R30
    Transport length 6.575 m
    Transport width 2.75 m
    Transport height 3.375 m
    Travel speed 40 km/h
    Transmission 18/4
    Transmission type m
    Weight 11.73 t
    Control unit 4 ew/dw
    Engine manuf. FPT
    Engine type k.A.
    Engine power 347 HP
    Displacement 8.7 l
    Revolutions at max torque 2000 rpm
    No. of cylinders 6
    Emission level V

    is a 0 for the size specification so that means, that no information is available.

    Magnum 310 Case IH - Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • Air brakes
    • ISO Bus
    • Aircondition
