9280 Case IH 9280 Specifications & Technical Data (1990—1995)

Engine power: 279.6kW – Back tyres: 11833 – Front tyres: 11833 – Transport length: 7.09m – Transport width: 2.43m – Transport height: 4.16m

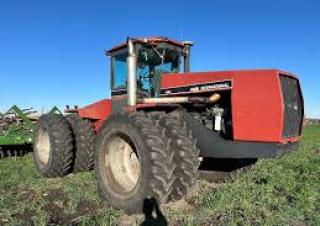

4WD Tractors Case IH 9280

Technical specs - 9280 Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
279.6 kW
Back tyres
11833
Front tyres
11833
Transport length
7.09 m
Transport width
2.43 m
Transport height
4.16 m
Travel speed
27.8 km/h
Transmission
12F/3R
Transmission type
LS
Weight
13.15 t
Engine manuf.
Cummins
Engine type
NTA-855
Displacement
14 l
Revolutions at max torque
1400 rpm
Max. torque
1717 Nm
No. of cylinders
6
Cylinder bore x stroke
140x152 mm

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
Yes

Case IH 9280 FAQ

When was the Case IH 9280 manufactured?

The Case IH 9280 was manufactured from 1990 to 1995.

What is the weight of the Case IH 9280?

The Case IH 9280 has a weight of 13.15 tonnes.

What are the physical dimensions of the Case IH 9280 tractor?

The Case IH 9280 tractor has a transport length of 7.09 meters, a transport width of 2.43 meters, and a transport height of 4.16 meters.

What is the engine power of the Case IH 9280?

The Case IH 9280 has an engine power of 279.6 kW.

What is the travel speed of the Case IH 9280?

The Case IH 9280 has a travel speed of 27.8 km/h.

What are the drivetrain and propulsion system specifications of the Case IH 9280?

The Case IH 9280 has a powershift transmission with 12 forward speeds and 3 reverse speeds.

What are the wheel and tyre specifications for the Case IH 9280?

The Case IH 9280 has front and back tyres sized 11833.

How much is a Case IH 9280 4WD Tractor (1990u20131995) worth?

The residual value of the Case IH 9280 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
