833 Case IH 833 Specifications & Technical Data (1981—1990)

Engine power: 50kW – Back tyres: 14.9R30 – Front tyres: 43230 – Transport length: 3.57m – Transport width: 1.97m – Transport height: 2.47m

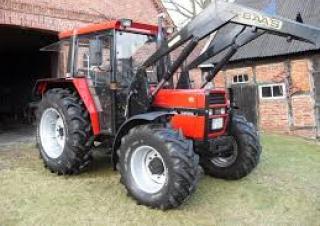

4WD Tractors Case IH 833

Technical specs - 833 Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
50 kW
Back tyres
14.9R30
Front tyres
43230
Transport length
3.57 m
Transport width
1.97 m
Transport height
2.47 m
Travel speed
30 km/h
Transmission
8F/4R
Transmission type
m
Weight
2.9 t
Engine manuf.
International Harvester
Engine type
D-239
Displacement
3.9 l
Revolutions at max torque
1500 rpm
Max. torque
235 Nm
No. of cylinders
4
Cylinder bore x stroke
98x129 mm

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Case IH 833 FAQ

When was the Case IH 833 manufactured?

The Case IH 833 was manufactured from 1981 to 1990.

What is the weight of the Case IH 833 tractor?

The Case IH 833 tractor has a weight of 2.9 tonnes.

What are the transport dimensions of the Case IH 833 tractor?

The Case IH 833 tractor has a transport length of 3.57 meters, a transport width of 1.97 meters, and a transport height of 2.47 meters.

What is the engine power of the Case IH 833?

The Case IH 833 has an engine power of 50 kW.

What is the travel speed of the Case IH 833?

The Case IH 833 has a travel speed of 30 km/h.

What are the drivetrain and propulsion system specifications of the Case IH 833?

The Case IH 833 has a mechanical transmission with 8 forward speeds and 4 reverse speeds.

What are the wheel and tyre specifications of the Case IH 833?

The Case IH 833 has front tyres sized 43230 and back tyres sized 14.9R30.

How much is a Case IH 833 4WD Tractor (1981u20131990) worth?

The residual value of the Case IH 833 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
