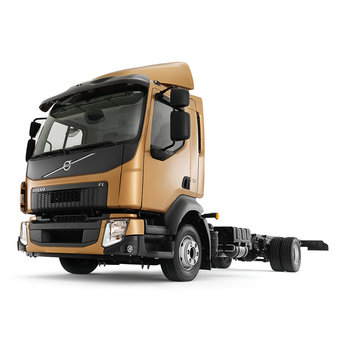

FL512 4x2 Platform Volvo Trucks (2013 - 2026) lorry truck specs & dimensions

The Volvo Trucks FL512 4x2 Platform is a rigid chassis truck manufactured by Volvo Trucks since 2013. It is equipped with an engin…

The Volvo Trucks FL512 4x2 Platform is a rigid chassis truck manufactured by Volvo Trucks since 2013. It is equipped with an engine power of 156 kW and has a gross combination weight of 15 tons. The truck has a gross vehicle weight of 12 tons and a wheelbase of 5000 mm.

Trucks Rigid Chassis Volvo Trucks FL512 4x2 Platform

Technical specs - FL512 4x2 Platform Volvo Trucks

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Gross vehicle weight
12 t
Gross combination weight
15.5 t
Drive type
4x2
Engine power
156 kW
Emission standard
Euro VI
Front suspension
B
Rear suspension
L
Wheelbase
5000 mm
Transmission type
man.
Model series
FL

Download datasheets (PDF)

Volvo Trucks FL512 4x2 Platform overview

Cabin

Superstructure Preparations

FBA-BTF Lower front body attachments for torsionally flexible - platform body. FBA-BTSF Lower front body attachments for torsionally semi-flexible body - box or curtainsider. RBA-T2 Rear body attachments, divided. TAILPREP Taillift preparation kit - cab switch and warning in driver display.


Engine

Core Components

CHH-LOW Chassis height low - For a specific loading height always check the unique BEP chassis drawing. CHH-MED Chassis height medium - For a specific loading height always check the unique BEP chassis drawing. RAD-A2V Two bag rear air suspension. EUSCR6 Emission level - Euro 6. D5K210 D5K210 four cylinder 5.1 litre engine developing 210hp at 2200rpm. Peak torque 800Nm at 1100-1700rpm. D5K240 D5K240 four cylinder 5.1 litre engine developing 240hp at 2200rpm. Peak torque 900Nm at 1100-1600rpm. EBR-EPG Exhaust brake producing 120kW at 2800rpm controlled by steering column switch. AT0516 6-speed overdrive "I-Sync" automated mechanical gearbox. AT0806 6-speed overdrive "I-Sync" automated mechanical gearbox. ST0806 6-speed overdrive gearbox, 850 Nm. ZTO1006 6-speed overdrive gearbox. RSS0819A RSS0819A single reduction rear axle - design GCW 18.7 tonne with differential lock. RSS1125A RSS1125A single reduction rear axle - design GCW 25tonne with differential lock. RSS1132A RSS1132A single reduction rear axle - design GCW 32tonne with differential lock.


Tyres / Axle

Wheels & Tyres

SPWT-F Spare wheel & tyre with front tyre pattern. SWCP-LF Spare wheel carrier on left side of chassis ahead of rear axle. SWCP-R Spare wheel carrier rear mounted below frame. SWCP-T Spare wheel supplied temporarily strapped to chassis. SWCP-TP Spare wheel carrier transport mounted on frame (spare wheel carrier not included). JACK-6T 6 tonne bottle jack. JACK-8T 8 tonne bottle jack. GAUGE-TP Tyre pressure gauge.
