TGL 10.190 4x2 MAN (2019 - 2022) lorry truck specs & dimensions

The MAN TGL 10.190 4x2 is a rigid chassis truck manufactured by MAN from 2019 to 2022. It is equipped with an engine power of 141.…

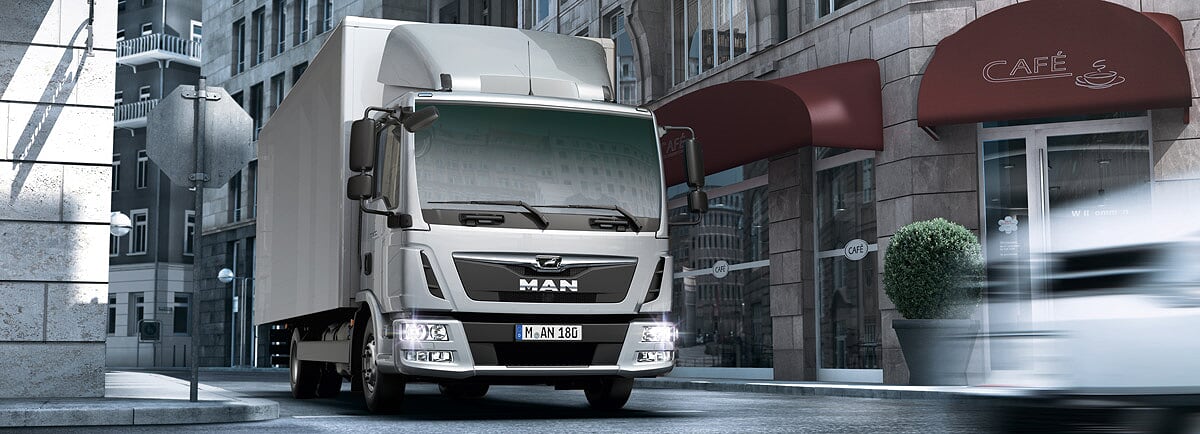

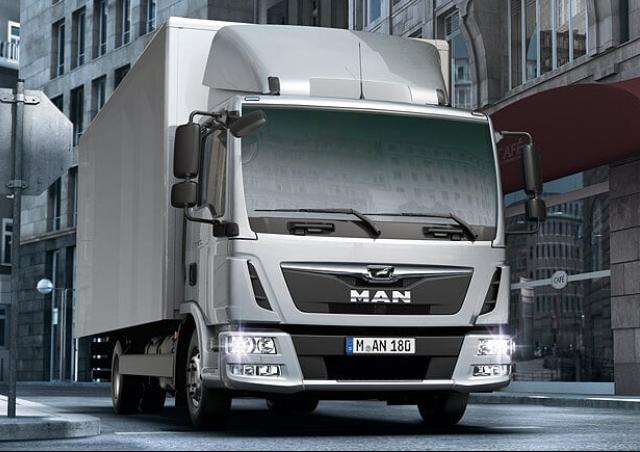

The MAN TGL 10.190 4x2 is a rigid chassis truck manufactured by MAN from 2019 to 2022. It is equipped with an engine power of 141.7 kW and has a gross vehicle weight of 10 tons. The truck has a wheelbase of 3050 mm.

Visit MAN live at

Technical specs - TGL 10.190 4x2 MAN

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Gross vehicle weight
10 t
Drive type
4x2
Engine power
141.7 kW
Emission standard
Euro VI
Front suspension
L
Rear suspension
B
Wheelbase
3050 mm
Cab
C
Transmission type
A/man.
Model series
TGL

Download datasheets (PDF)

MAN TGL 10.190 4x2 overview

Safety

With the MAN TGL and TGM, even being stationary is innovative.

With innovative brake technologies, MAN trucks make daily operations as safe as they are feasible. The electronic braking system (EBS) assures superlative braking characteristics in all situations. The ABS with off-road logic can also enhance braking on unsurfaced and slippery ground conditions. The anti-slip control (ASC) and the electronic stability program (ESP) are standard equipment items that improve road safety. As even a brief moment of distraction can lead to an accident, MAN has also developed the anticipatory Emergency Brake Assist (EBA). It gives drivers an advance warning of impending collisions, providing them with valuable time to react. The system automatically initiates braking in an emergency.


Emergency Stopping Signal (ESS)

Instead of the brake lights simply coming on, the Emergency Stopping Signal (ESS) warns the traffic behind of emergency braking via the hazard lights. These flash faster to alert the traffic behind to the emergency. Once the vehicle is stationary, the hazard lights are automatically activated to prevent rear-end collisions. The ESS therefore helps to enhance road safety.


Tyres / Axle

Automatic low-beam headlights and automatic wiper system with sensors

The automatic low-beam headlights with light sensors activate and deactivate the vehicle and rear lights as needed. Dawn and dusk, tunnels and bridges are also detected and the lighting is regulated accordingly. The automatic wipers with rain sensor are activated as soon as visibility is affected by rain or dirt. The optimum wiper speed is then set automatically depending on the situation. The system can detect all kinds of visibility conditions such as rain, splashes, streaks or dirt.


New LED rear lights

With tail lights in an LED design, burnt-out lightbulbs and the associated compared safety and maintenance costs can be avoided. LED lights have a longer service life and lower energy consumption than conventional lightbulbs.
