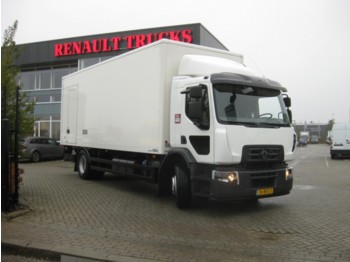

D 19 WIDE 4x2 R 280 E6 Renault (2020 - 2026) lorry truck specs & dimensions

Cab exterior

Day cab All steel cab, electro-zinc plated and cataphoretic paint treatment. Cab paint colour: White ekla technical code: 09350 Red badge

Cab interior

Upper storage cupboard with net cover, 2 storage compartments (50 l) with net covers. Three sun blinds on windscreen. DTCO 4.0 digital chronotachograph. Air-suspended driver's seat with fitted seat belt. Driver's armrest. Red seat belts. Adjustable passenger seat. Blower socket on central console. Normal engine tunnel. Cab lighting time-delay. 2 Coat hooks on rear panel. Electrically operated door windows. Air conditioning. Handbook and Service pack in French.

Minimum Front Axle Load

To maintain the driving comfort (lightness of steering, braking) of vehicles in all load and driving conditions once the vehicle is bodied, the following minimum front axle load(s) must be respected: 3500 kg. The weight of the vehicle is an average indicative weight of its STANDARD build, filled with urea, oil, windscreen wash liquid and coolant at 100%, fuel level at 90% and with driver (75kg).

Electrical Equipment

Battery capacity: 170 Ah Batteries with level check Battery isolation switch Alternator : 110 amp capacity. Rear signalling lighting.

Bumper - Steps and Lighting

3-part plastic bumper Access to driving position by 2 stepwell steps. Step lighting. Headlamp levelling control. Running lights.

Rear drive axle

P13170-E single reduction final drive axle without differential lock. Rear loading capacity (technical max.): 13 t. Drive axle ratio: 3.36. P1391 drive axle with double hub reduction, P13170 single reduction final drive axle, and P1361 drive axle with double hub reduction. Other drive axle ratios are available, including an integral differential lock.

Chassis

Chassis protective paintwork, mineral grey colour technical code: 03650. Standard rear overhang, pre-drilled for bodybuilder. Removable front towing cap, front under-run protection, and rear under-run bar. Closing cross member with pre-drilling for towing yoke, wings fitted in standard position, and side exhaust.

Bodywork

Body mounting brackets front and rear, with bodybuilder access through the bulkhead. Orange LED side marker lights with reflector and provision for bodybuilder electronic box interface.
