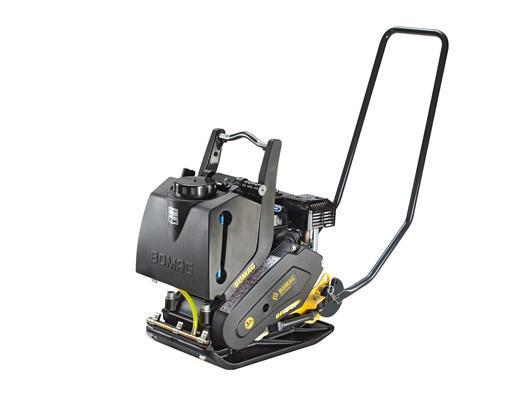

BP 10/35 Bomag BP 10/35 Specifications & Technical Data (2009—2026)
-
Model rating
- 10,00 / 10
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BP 10/35 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 65 kg
- Centrifugal force
- 10 kN
- Working width
- 350 mm
- Vibrating frequency
- 90 Hz
- Power source
- B
- Model series
- BP
- Engine manuf.
- Honda
- Engine type
- GX120
- Engine power
- 2.9 kW
- Dimension lxwxh
- 710x355x1020 mm
- Revolutions at max torque
- 4300 rpm
More technical details, like: displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Download datasheets (PDF)
Events
Visit Bomag live at
Buy & Rent
Compare Bomag BP 10/35 with similar Single Direction Vibratory Plate Compactors
.jpg)
Bomag BP 10/35
- Weight:
- 65 kg
- Centrifugal force:
- 10 kN
- Working width:
- 350 mm
- Vibrating frequency:
- 90 Hz
Atlas Copco LF 50
- Weight:
- 53 kg
- Centrifugal force:
- 8 kN
- Working width:
- 320 mm
- Vibrating frequency:
- 95 Hz
Vibromax AV 600
- Weight:
- 68 kg
- Centrifugal force:
- 7.3 kN
- Working width:
- 360 mm
- Vibrating frequency:
- 97 Hz
Rilco BP 1038 H
- Weight:
- 70 kg
- Centrifugal force:
- 10 kN
- Working width:
- 380 mm
- Vibrating frequency:
- 75 Hz
weber mt VB 35-2
- Weight:
- 60 kg
- Centrifugal force:
- 9 kN
- Working width:
- 370 mm
- Vibrating frequency:
- 95 Hz
