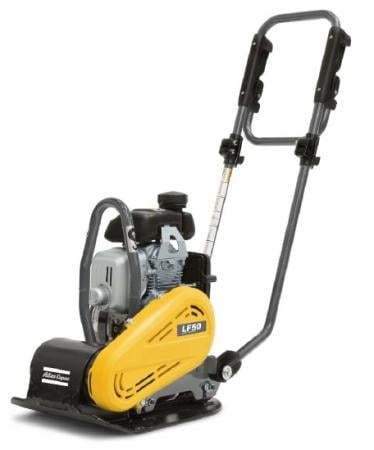

Atlas Copco LF 50 Specifications & Technical Data (2011-2018)

Weight: 53kg – Centrifugal force: 8kN – Working width: 320mm – Vibrating frequency: 95Hz – Power source: B – Model series: LF

Technical specs - LF 50 Atlas Copco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
53 kg
Centrifugal force
8 kN
Working width
320 mm
Vibrating frequency
95 Hz
Power source
B
Model series
LF
Engine manuf.
Honda
Engine type
GX100
Engine power
2.2 kW
Revolutions at max torque
4300 rpm

More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Download datasheets (PDF)

Buy & Rent

Compare Atlas Copco LF 50 with similar Single Direction Vibratory Plate Compactors

Atlas Copco LF 50

Atlas Copco LF 50

Weight:
53 kg
Centrifugal force:
8 kN
Working width:
320 mm
Vibrating frequency:
95 Hz
Atlas Copco LF 50

Atlas Copco LF 50

Weight:
53 kg
Centrifugal force:
8 kN
Working width:
320 mm
Vibrating frequency:
95 Hz
Ammann AVP 1033

Ammann AVP 1033

Weight:
50 kg
Centrifugal force:
10.5 kN
Working width:
300 mm
Vibrating frequency:
100 Hz
weber mt VB 35-2

weber mt VB 35-2

Weight:
60 kg
Centrifugal force:
9 kN
Working width:
370 mm
Vibrating frequency:
95 Hz
Ravi RVP 9 BR

Ravi RVP 9 BR

Weight:
45 kg
Centrifugal force:
9.3 kN
Working width:
360 mm
Vibrating frequency:
98 Hz
