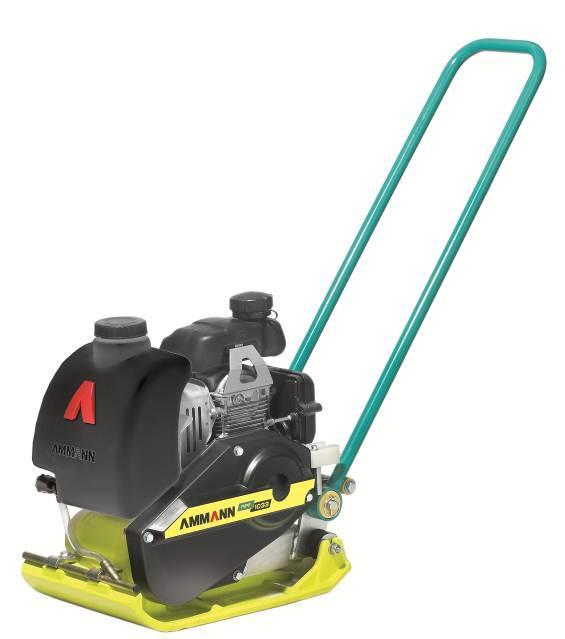

Ammann APF 1033
- Weight:
- 54 kg
- Centrifugal force:
- 10.5 kN
- Working width:
- 330 mm
- Vibrating frequency:
- 100 Hz
APF 1033 Ammann APF 1033 Specifications & Technical Data (2012—2020)
-
Model rating
- 10,00 / 10
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - APF 1033 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 54 kg
- Centrifugal force
- 10.5 kN
- Working width
- 330 mm
- Vibrating frequency
- 100 Hz
- Power source
- B
- Model series
- APF
- Engine manuf.
- Honda
- Engine type
- GX610V
- Engine power
- 2.2 kW
- Revolutions at max torque
- 3600 rpm
More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
