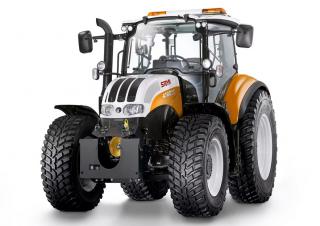

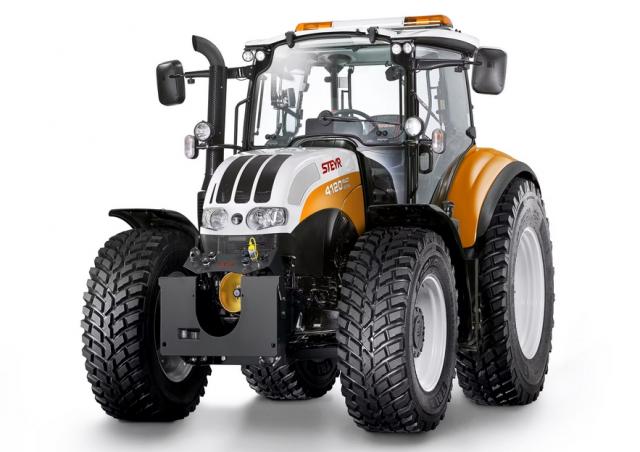

Steyr 4120 Multi Specifications & Technical Data (2020-2025)

Weight without attachment: 4.39t – Travel speed: 40km/h – Back tyres: 440/80 R34 – Front tyres: 360/80 R24 – Transport length: 4.2m – Transport width: 2.1m

Vehicles Compact Utility Tractors Steyr 4120 Multi
Vehicles Compact Utility Tractors Steyr 4120 Multi
Vehicles Compact Utility Tractors Steyr 4120 Multi
Vehicles Compact Utility Tractors Steyr 4120 Multi
Vehicles Compact Utility Tractors Steyr 4120 Multi
Vehicles Compact Utility Tractors Steyr 4120 Multi
Vehicles Compact Utility Tractors Steyr 4120 Multi
Vehicles Compact Utility Tractors Steyr 4120 Multi

Technical specs - 4120 Multi Steyr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
4.39 t
Travel speed
40 km/h
Back tyres
440/80 R34
Front tyres
360/80 R24
Transport length
4.2 m
Transport width
2.1 m
Transport height
2.74 m
Transmission
32/32
Steering mode
F
Attachment
F
Model series
Multi
Engine manuf.
CNH
Engine type
k.A.
Engine power
86 kW
Displacement
3.595 l
No. of cylinders
4
Emission level
V

More technical details, like: bridge length, bridge width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, weight are available in the full technical specs.

Special equipment

Cabin
Yes
Front hydraulics
Yes
Front PTO
Yes
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
No
