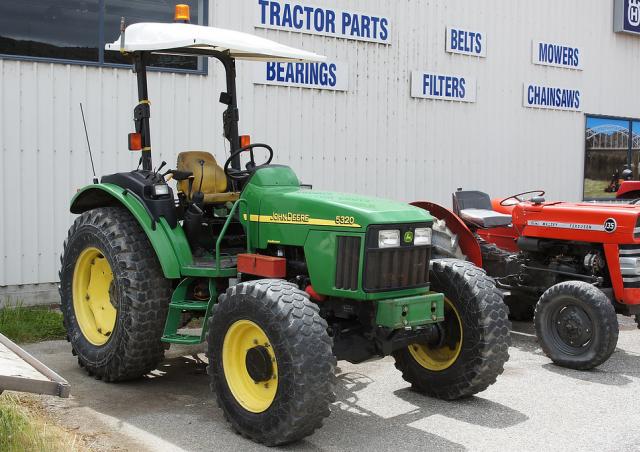

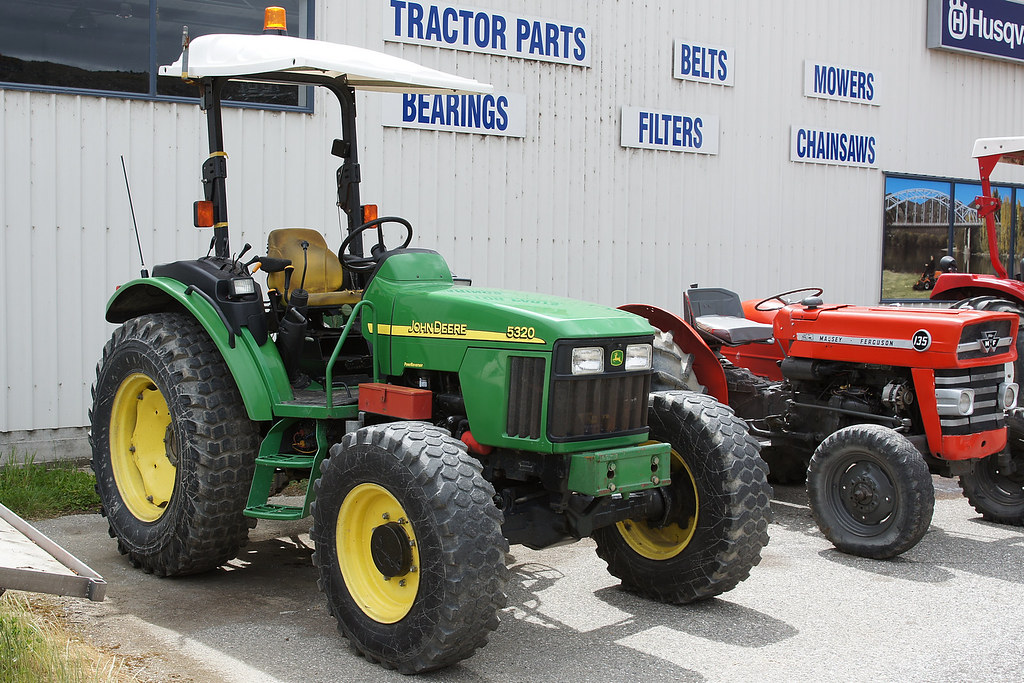

5320 John Deere 5320 Specifications & Technical Data (2002—2004)

Weight without attachment: 1.747t – Travel speed: 31.4km/h – Back tyres: 14.9-28 – Front tyres: 7.50-16 – Transport length: 3.5m – Transport width: 1.79m

Vehicles Compact Utility Tractors John Deere 5320

Technical specs - 5320 John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
1.747 t
Travel speed
31.4 km/h
Back tyres
14.9-28
Front tyres
7.50-16
Transport length
3.5 m
Transport width
1.79 m
Model series
5
Engine manuf.
John Deere
Engine type
3029T
Engine power
47.7 kW
Displacement
2.9 l
Revolutions at max torque
2400 rpm
Max. torque
195 Nm
No. of cylinders
3
Cylinder bore x stroke
106 x 110 mm

More technical details, like: transmission, bridge length, bridge width, transport height, steering mode, attachment, dimension lxwxh, weight, emission level are available in the full technical specs.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
Yes
