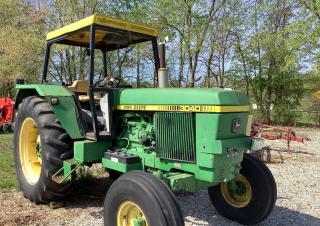

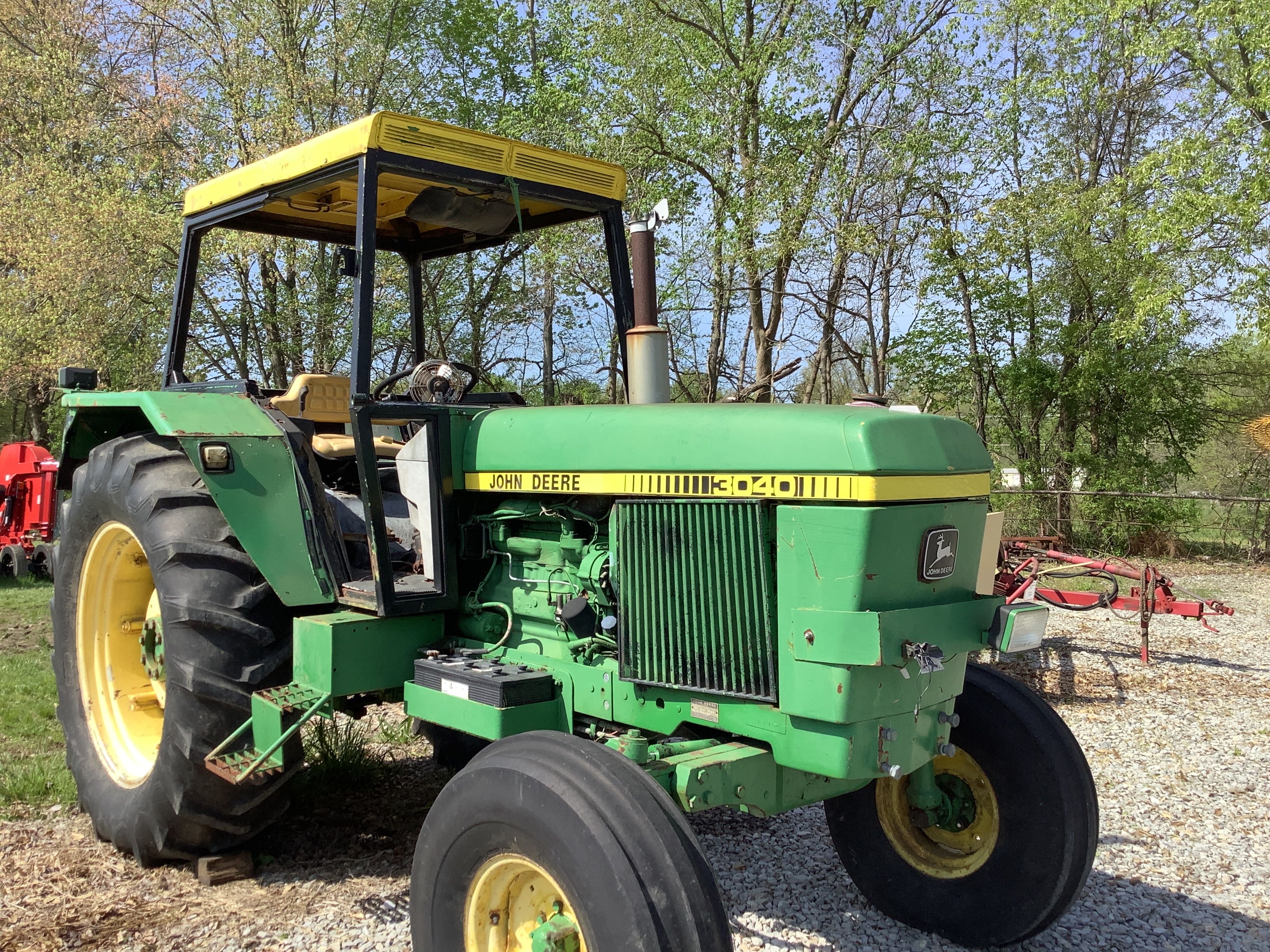

3040 John Deere 3040 Specifications & Technical Data (1980—1987)

Weight without attachment: 4.162t – Travel speed: 28.8km/h – Back tyres: 16.9-38 – Front tyres: 10.00-16 – Transport length: 4.24m – Transport width: 2.05m

Vehicles Compact Utility Tractors John Deere 3040

Technical specs - 3040 John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
4.162 t
Travel speed
28.8 km/h
Back tyres
16.9-38
Front tyres
10.00-16
Transport length
4.24 m
Transport width
2.05 m
Transport height
2.79 m
Model series
3
Engine manuf.
John Deere
Engine type
N/A
Engine power
66 kW
Displacement
5.9 l
Revolutions at max torque
2400 rpm
Max. torque
295.6 Nm
No. of cylinders
6
Cylinder bore x stroke
106 x 110 mm

More technical details, like: transmission, bridge length, bridge width, steering mode, attachment, dimension lxwxh, weight, emission level are available in the full technical specs.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
Yes
