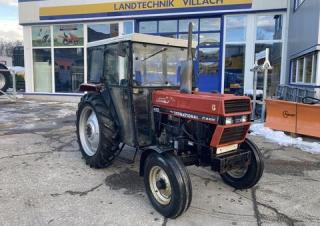

485 Case IH 485 Specifications & Technical Data (1985—1991)

Weight without attachment: 2.358t – Travel speed: 25km/h – Back tyres: 13.6-28 – Front tyres: 6.00-16 – Transport length: 3.59m – Transport width: 1.85m

Vehicles Compact Utility Tractors Case IH 485

Visit Case IH live at

Technical specs - 485 Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
2.358 t
Travel speed
25 km/h
Back tyres
13.6-28
Front tyres
6.00-16
Transport length
3.59 m
Transport width
1.85 m
Transport height
2.37 m
Engine manuf.
Case IH
Engine type
N/A
Engine power
39.5 kW
Displacement
2.9 l
Revolutions at max torque
1400 rpm
Max. torque
182 Nm
No. of cylinders
3
Cylinder bore x stroke
99 x 129 mm

More technical details, like: transmission, bridge length, bridge width, steering mode, attachment, model series, dimension lxwxh, weight, emission level are available in the full technical specs.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
Yes
