Multifarmer 27.8 Merlo Telehandler Specs & Dimensions (2007 - 2009)

Name: Merlo Multifarmer 27.8 Telehandlers
Brand: Merlo

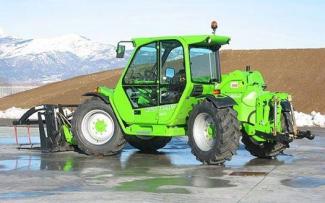

The Merlo Multifarmer 27.8 is a telehandler manufactured from 2007 to 2009. It has a weight of 6.18 tons and a transport length of…

The Merlo Multifarmer 27.8 is a telehandler manufactured from 2007 to 2009. It has a weight of 6.18 tons and a transport length of 5.01 meters. The telehandler has a nominal load at the center of gravity of 2.7 tons and a lifting height of 8.2 meters. It has a capacity of 0.7 tons at full forward reach and a capacity of 1.6 tons at full lift height. The center of gravity is located at 500 millimeters. The transport width of the telehandler is 2.04 meters.

Multifarmer 27.8

Years of manufacture: 2007—2009

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Multifarmer 27.8 Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2.7 t

Model series: Multifarmer

Centre of gravity: 500 mm

Standard tyres: 405/70-24

Max. Reach horizontal: 5.3 m

Capacity at full forward reach: 0.7 t

Lifting height: 8.2 m

Capacity at full lift height: 1.6 t

Weight: 6.18 t

Transport length: 5.01 m

Transport width: 2.04 m

Engine manuf.: Deutz

Engine type: 4 Zyl. Turbo

Engine power: 74.9 kW

More technical details, like: transmission type, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download datasheets (PDF)
