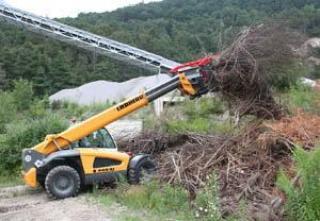

TL 445-10 Liebherr Telehandler Specs & Dimensions (2006 - 2011)

Performance

The Liebherr telescopic handlers stand out with their high lifting forces and precision of operation. At the same time, powerful working hydraulics, an infinitely variable hydrostatic travel drive, and excellent manoeuvrability guarantee fast work. The versatile and extremely sturdy construction machines always allow the driver to quickly and safely convert the power of the machine into working output. The new telescopic handlers from Liebherr are designed for maximum performance even under the most difficult conditions. High bearing loads, manoeuvrability, intuitive operation, and high-performance travel and working hydraulics components make working easier than ever before.

Efficiency

The Liebherr telescopic handlers offer clear economic benefits. Intelligent control combined with high-performance individual components guarantee low fuel consumption. Ease of servicing was an important factor from the development stage onwards. This means that Liebherr telescopic handlers reduce service and maintenance costs. Additionally, the Liebherr telescopic handlers are all-rounders that make a decisive contribution to the efficiency of your vehicle fleet. Many different optional attachments allow universal use and increased utilization of the machines. Top performance, low fuel consumption, and minimum maintenance guarantee economy throughout the service life of the machine.

Reliability

Liebherr telescopic handlers are designed for durability and can handle the challenges of day-to-day use over a long service life. The new telescopic handlers have been tested under the most punishing conditions. Tried-and-tested systems such as the boom design and the drive concept guarantee the accustomed Liebherr quality. This means the machines offer maximum reliability, safety, and availability. Robustness and reliability characterise the Liebherr telescopic handlers. Mature technology and high-quality materials and workmanship guarantee maximum reliability.

High bearing loads

Excellent weight distribution is achieved with a favourable centre of gravity and a long wheel base, allowing the Liebherr telescopic handlers to have outstanding lifting force and stability both for loading and stacking. The robust boom design allows heavy bearing loads in lifting operation, while large bearings allow maximum performance and minimum wear throughout the service life. The sturdy telescopic handler can carry heavy loads and withstand even the most punishing conditions.

Compact and manoeuvrable

With turning circles under 3.80 m, the Liebherr telescopic handlers are the leaders in their class. The mudguards and counterweight are within the turning circle, which means all the sensitive components are protected from damage.

Easy maintenance

All maintenance points on the engine and the hydraulic system are easily accessible, thus reducing daily maintenance to a minimum. The optional central lubrication system even further reduces maintenance work.

Flexible and versatile

Liebherr offers a wide range of specially developed attachments, including forks, buckets, and pivoting working platforms. If the telescopic handler is fitted with a hydraulic quick hitch system, the attachments can be changed at the touch of a button.

An all-rounder

The wide range of attachments make the Liebherr telescopic handlers all-rounders. A simple fork, a cable winch, or a raised working platform – there is no challenge that cannot be mastered.

Robust design

The tried-and-tested protection systems prevent wear and physical damage to the electronics.Condensate cannot accumulate so there is no danger of short circuits.High utilisation and value is secured over the long term.

Intelligent hydraulics

Load sensing: The working hydraulics pump always delivers the exact quantity of oil required. This protects the components and saves fuel. Liebherr hydraulic control: The Liebherr control system precisely converts all joystick movements into the corresponding working movement – simultaneously and regardless of the load to be moved.

Liebherr travel drive

The Liebherr telescopic handlers are based on the tried-and-tested hydrostatic travel drive. The speed can be infinitely varied for driving without shifting gear, and absolutely no jolts. Benefits of the hydrostatic drive at a glance: no brake wear, low fuel consumption, fast and precise manoeuvring.

Compact and manoeuvrable

Simple selection of steering modes: All steering modes can be selected using a rotary switch: front-wheel steering, four-wheel steering, and crab steering. The driver does not need to straighten the wheels in between. Minimum turning circle: A large steering angle allows a very small turning circle and therefore efficient operation in restricted spaces.

Reliable everywhere

The oscillating rear axle (with optional lock) and the level compensation system contribute towards safety and reliability on any terrain.

Low operating costs

The perfect interaction between the hydrostatic travel drive and the Liebherr diesel engine helps save fuel even on longer journeys. Intelligent options such as electronic engine control reduce fuel consumption during loading.

Autopower – power whenever you want it

The unique autopower function (optional) regulates the engine speed and therefore the speed of the working hydraulics according to the deflection of the joystick, thus allowing fuel-saving driving throughout the day.Fast working hydraulics and finely metered travel drive without using the inch pedal – exclusive to Liebherr telescopic handlers.

Precise side shifting

Telescopic handlers on wheels can be shifted sideways inch-by-inch using the crab steering function.When the machine is on stabilisers, the driver can use the optional side shifting function to move the load sideways without having to move the machine.

Liebherr load torque limitation

Before the device can tilt over forward, the working hydraulics slow down to a standstill. After that, the machine can only be moved out of the danger area. This function can be disabled for loading operation.

Non-fatiguing, efficient operation

The seat can be individually adjusted for the driver. Additionally, the steering column can be optionally adjusted in height and length. All the functions of the boom can be controlled using the joystick. Even forward and reverse direction can be selected on the joystick, which means the driver can always keep one hand on the steering wheel. For particularly demanding tasks, the driver can reduce the speed of the working and travel hydraulics for precise, safe, and relaxed operation. Gentle, normal, or aggressive travel hydraulics actuation can be selected at the touch of a button. This means the driving characteristics can be adapted to bucket or fork operation.

Precise operation

By activating the fine control function, the driver can reduce the speed of the working and travel hydraulics. This allows extremely sensitive control of all movements.

Versatile and flexible

Numerous options such as ride control, automatic bucket return-to-dig, float position function, and side shifting on stabilisers allow the machines to be configured for any application.

Performance data

Operating weight with standard forks, without operator. Max. lift capacity. Max. lift height. Max. forward reach. Max. boom side-shift (optional) at max. forward reach.

Comfort

The cab was specially developed with the comfort of the driver in mind. A spacious interior, perfect visibility in all directions and ergonomically arranged controls make operating the machine as pleasant and relaxing as possible. The driver can control all travel and working hydraulics functions with his right hand on the joystick. The cab of the telescopic handler is an ideal workplace. It provides excellent sightlines in all directions, has a spacious interior, guarantees safety, and its ergonomic controls allow relaxed and productive operation.

Reliable safety systems

An audible and visible overload warning system provides early warning of dangerous situations while stacking.The automatic load cut-off (which can be optionally disabled) prevents forward tilting. Before this can happen, all movements of the working hydraulics are slowed down.

Optimum sightlines in all directions

The large windows provide a perfect all-round view. The innovative protective design of the roof window provides a perfect view of the load while also protecting the driver.

Unhindered view

Good sightlines were a main priority during development. Therefore, the pivot point was placed as low as possible to also allow an unhindered view to the rear and the right. The soundproofed ROPS/FOPS cab guarantees safe and pleasant operation. Thanks to the large windows, the driver always has a good view of the surroundings.

Perfect rear view

The pivot point of the boom is positioned extremely low in order to guarantee the best visibility. The driver has an excellent view of the most critical areas behind and to the right of the cab.

Closed main frame

The main frame is closed, which means the components inside cannot be damaged by falling parts.The closed underfloor and large ground clearance provide protection even on difficult terrain.The engine compartment can be specially sealed for very dusty environments.

Seat comfort and ergonomics

The driver’s seat has spring suspension and can be adjusted in three directions for maximum comfort. The steering column is easily adjustable in both height and length (option).
