4407 Kramer Telehandler Specs & Dimensions (2015 - 2021)

The Kramer 4407 is a telehandler manufactured by Kramer from 2015 to 2021. It has a weight of 7.9 tons and a transport length of 4…

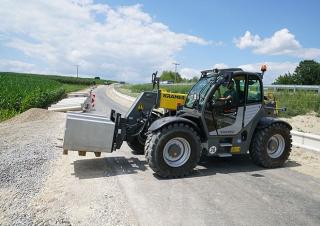

The Kramer 4407 is a telehandler manufactured by Kramer from 2015 to 2021. It has a weight of 7.9 tons and a transport length of 4.985 meters. The telehandler has a nominal load at the center of gravity of 4.4 tons and a lifting height of 7 meters. Its center of gravity is located at 500 millimeters. The machine has a travel speed of 20 kilometers per hour and a transport width of 2.5 meters. The transport height of the telehandler is 2.49 meters.

Telehandlers Kramer 4407
Telehandlers Kramer 4407
Telehandlers Kramer 4407
Telehandlers Kramer 4407
Telehandlers Kramer 4407
Telehandlers Kramer 4407
Telehandlers Kramer 4407
Telehandlers Kramer 4407

Visit Kramer live at

Technical specs - 4407 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4.4 t
Centre of gravity
500 mm
Standard tyres
460/70-24
Transmission type
HY
Lifting height
7 m
Weight
7.9 t
Transport length
4.985 m
Transport width
2.5 m
Transport height
2.49 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
90 kW
Displacement
3.6 l
Revolutions at max torque
1600 rpm
Emission level
Tier 4 i

More technical details, like: model series, max. reach horizontal, capacity at full forward reach, capacity at full lift height, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load...

More technical details, like: model series, max. reach horizontal, capacity at full forward reach, capacity at full lift height, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
