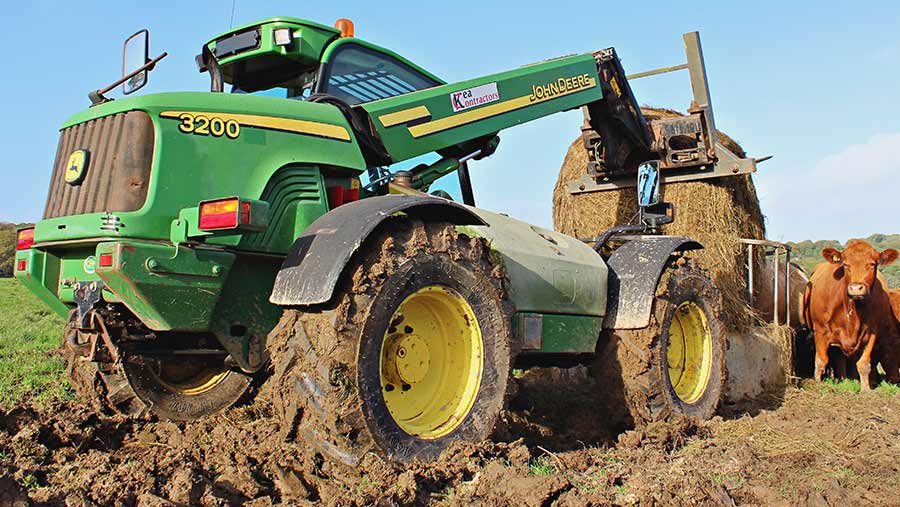

3200 John Deere Telehandler Specs & Dimensions (2000 - 2003)

Name: John Deere 3200 Telehandlers
Brand: John Deere

The John Deere 3200 is a telehandler manufactured by John Deere from 2000 to 2003. It weighs 6.36 tons and has a nominal load capa…

The John Deere 3200 is a telehandler manufactured by John Deere from 2000 to 2003. It weighs 6.36 tons and has a nominal load capacity of 2.8 tons at the center of gravity. The lifting height is 5.62 meters, and it has a capacity of 1.5 tons at full forward reach and 2.8 tons at full lift height. The center of gravity is located at 500 millimeters.

3200

Years of manufacture: 2000—2003

Buy & Rent
Spare parts
Transport
News

Technical specs - 3200 John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2.8 t

Model series: 3000

Centre of gravity: 500 mm

Standard tyres: 405/70R20

Transmission type: W

Max. Reach horizontal: 3.11 m

Capacity at full forward reach: 1.5 t

Lifting height: 5.62 m

Capacity at full lift height: 2.8 t

Weight: 6.36 t

Engine manuf.: John Deere

Engine type: JD4045TF

Engine power: 74 kW

More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
