527-55 JCB Telehandler Specs & Dimensions (2008 - 2017)

Model rating
9,00 / 10

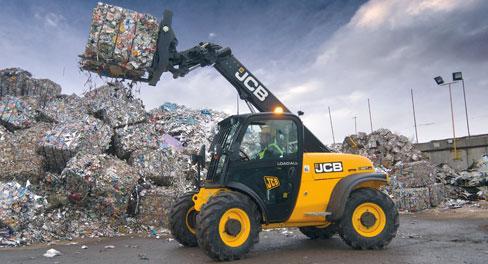

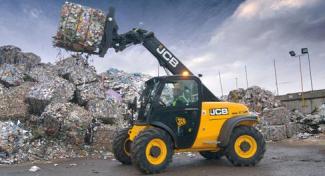

The JCB 527-55 telehandler, manufactured from 2008 to 2017, weighs 5.65 tons. It has a nominal load capacity of 2.7 tons at the ce…

The JCB 527-55 telehandler, manufactured from 2008 to 2017, weighs 5.65 tons. It has a nominal load capacity of 2.7 tons at the center of gravity and can lift loads up to a height of 5.6 meters. At full forward reach, it can handle loads weighing up to 1.25 tons. The telehandler has a center of gravity at 500mm and a capacity of 2.7 tons at its maximum lift height.

Telehandlers JCB 527-55

Visit JCB live at

Technical specs - 527-55 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.7 t
Model series
527
Centre of gravity
500 mm
Standard tyres
12.5/80x18
Max. Reach horizontal
3.3 m
Capacity at full forward reach
1.25 t
Lifting height
5.6 m
Capacity at full lift height
2.7 t
Weight
5.65 t
Engine manuf.
JCB
Engine type
444
Engine power
63 kW
Displacement
4.4 l
Revolutions at max torque
1200 rpm

More technical details, like: transmission type, transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load...

More technical details, like: transmission type, transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
