TH514 Caterpillar Telehandler Specs & Dimensions (2010 - 2013)

Name: Caterpillar TH514 Telehandlers
Brand: Caterpillar

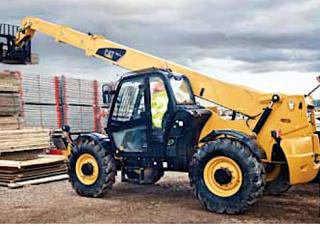

The Caterpillar TH514 is a telehandler manufactured by Caterpillar from 2010 to 2013. It has a weight of 10.76 tons and a transpor…

The Caterpillar TH514 is a telehandler manufactured by Caterpillar from 2010 to 2013. It has a weight of 10.76 tons and a transport length of 6.52 meters. The maximum horizontal reach is 9.225 meters, and it can lift loads up to 4.999 tons at the nominal center of gravity. The lifting height is 13.38 meters, and it has a capacity of 0.6 tons at full forward reach. The center of gravity is located at 500 millimeters. The travel speed of this telehandler is 32 km/h. It can handle loads up to 1.5 tons at full lift height. The transport width is 2.44 meters, and the transport height is 2.63 meters.

TH514

Years of manufacture: 2010—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TH514 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4.999 t

Model series: TH

Centre of gravity: 500 mm

Standard tyres: 14.00-24 16PR

Max. Reach horizontal: 9.225 m

Capacity at full forward reach: 0.6 t

Lifting height: 13.38 m

Capacity at full lift height: 1.5 t

Weight: 10.76 t

Transport length: 6.52 m

Transport width: 2.44 m

Transport height: 2.63 m

Travel speed: 32 km/h

Engine manuf.: Caterpillar

Engine type: C4.4 DITAAC

Engine power: 74.5 kW

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
