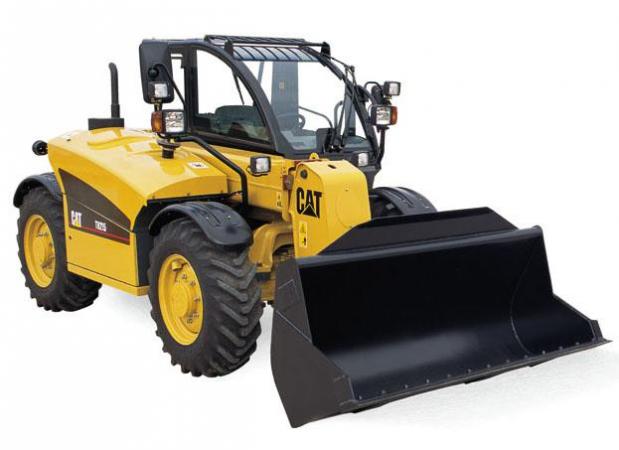

    Caterpillar TH215 Specifications & Technical Data (2002-2006)

    8,00/10 Rate this machine now!

    The TH215 telehandler model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machine here... Read more

    The TH215 telehandler model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machine here.

    Equipped with a powerful Caterpillar engine, this TH215 5.5t machine can provide 60kW or 80 horse power for the telehandler. The Caterpillar TH215 can be grouped in the smallest machine segment in the telehandlers category. The measurements of the TH215 are 1.9m x 4.2m x 2.13m. 12.5-20 is the size of standard tyres equipped on this Caterpillar TH215 telehandler. The Telehandler TH215 Caterpillar is designed to travel at a top speed of 32km/h. It can operate with up to 2.8m of horizontal reach. 2.5t is its maximum nominal load capacity with a 500mm center of gravity. The TH215 has a lift height of 5.5m, to which it can lift 2.5t. The capacity of this model at full forward reach is 1t.

    StVZO Equipment, Inclination correction and Side displacement are not provided on this model as of 2006. Take the original Caterpillar TH215 datasheet for even more detailed specifications and machine details. Available in Russian, German and English, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    The newest version of this TH215 model is priced at between €65,000 and €83,000, with the production of this model stopped in 2006. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Comparisons of the TH215 Caterpillar with other telehandler models reveal that, based on specifications and pricing, the model is similar to the Kramer 2506, DEUTZ-FAHR Agrovector 25.5 as well as Atlas ATL 25.11. At present, 23 other telehandlers, which range from 2.5t up to 7.8t are produced by Caterpillar. Of these, TH417C, TH337C and also TH414C are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Caterpillar TH215 specs data sheet on LECTURA Specs today!

    Technical specs - TH215 Caterpillar

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Nominal load at COG 2.5 t
    • Standard tyres 12.5-20
    • Centre of gravity 500 mm
    • Transmission type HY
    • Max. Reach horizontal 2.8 m
    • Capacity at full forward reach 1 t
    • Lifting height 5.5 m
    • Capacity at full lift hight 2.5 t
    • Weight 5.5 t
    • Transport length 4.2 m
    • Transport width 1.9 m
    • Transport height 2.13 m
    • Travel speed 32 km/h
    • Engine manuf. Caterpillar
    • Engine type 3054 B
    • Engine power 60 kW
    • max. climbing ability ###
    • Dimension lxwxh ###
    • Displacement ###
    • Revolutions at max torque ###
    • Max. torque ###
    • No. of cylinders ###
    • Cylinder bore x stroke ###
    • Emission level ###
    • Cab Position ###
    • Chassis Type ###
    • Levelling - Chassis ###
    • Stabilisers ###
    • Drive - 2W / 4W ###
    • Transmission Type ###
    • Engine Manufacturer ###
    • Engine Model ###
    • Aspiration ###
    • Rated Speed ###
    • Engine Output - Net ###
    • Engine Output - Gross ###
    • Tyre - Front Size ###
    • Tyre - Rear Size ###
    • Tyre 2 - Front Size Option ###
    • Tyre 2 - Rear Size Option ###
    • Service Brake - Location ###
    • Length - Front Of Carriage ###
    • Height - Over Cab ###
    • Width - Operating ###
    • Wheelbase ###
    • Ground Clearance ###
    • Width - Cab ###
    • Lift Height - Maximum ###
    • Reach - Maximum ###
    • Unstabilised Lift Height - With Maximum Capacity ###
    • Lift Capacity - Maximum ###
    • Lift Capacity - To Max Height ###
    • Lift Capacity - To Max Reach ###
    • Unstabilised Lift Capacity - Maximum ###
    • Unstabilised Lift Capacity - To Max Height ###
    • Unstabilised Lift Capacity - To Max Reach ###
    • Fuel Tank ###
    • Number Of Boom Sections ###
    • Load Centre ###
    • Lift Capacity - Fork Maximum ###
    • Raise Time - Boom ###
    • Extend Time - Boom ###
    • Speed - Forward Maximum ###
    • Operating Weight ###

    All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

    Special equipment

    • Diesel particulate filter
    • StVZO Equipment
    • Inclination correction
    • Side displacement
