TX170-45 Case Telehandler Specs & Dimensions (2008 - 2016)

The Case TX170-45 Telehandler, manufactured from 2008 to 2016, weighs 12.3 tons and has a transport length of 6.135 meters. It has…

The Case TX170-45 Telehandler, manufactured from 2008 to 2016, weighs 12.3 tons and has a transport length of 6.135 meters. It has a maximum horizontal reach of 12.54 meters and a lifting height of 16.6 meters. The nominal load at the center of gravity is 4.5 tons, and it has a capacity of 0.45 tons at full forward reach and 3 tons at full lift height. The telehandler has a center of gravity at 500 millimeters and a transport width and height of 2.445 meters and 2.45 meters, respectively.

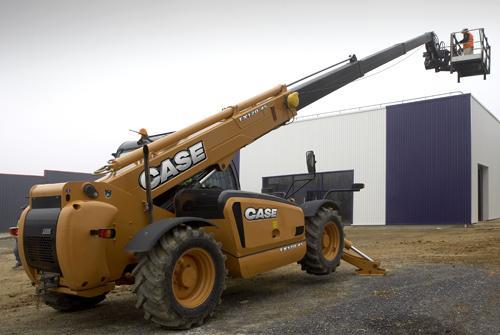

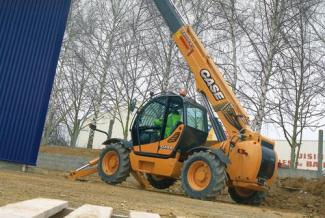

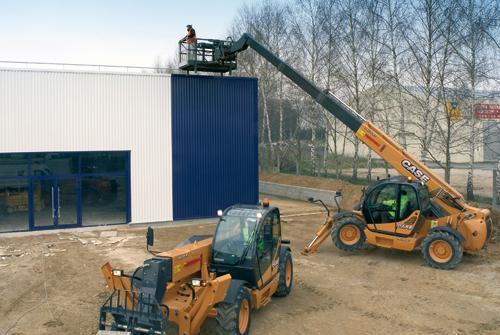

Telehandlers Case TX170-45
Telehandlers Case TX170-45
Telehandlers Case TX170-45
Telehandlers Case TX170-45
Telehandlers Case TX170-45
Telehandlers Case TX170-45

Technical specs - TX170-45 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4.5 t
Model series
TX
Centre of gravity
500 mm
Standard tyres
400/70x25
Max. Reach horizontal
12.54 m
Capacity at full forward reach
0.45 t
Lifting height
16.6 m
Capacity at full lift height
3 t
Weight
12.3 t
Transport length
6.135 m
Transport width
2.445 m
Transport height
2.45 m
Engine manuf.
CNH
Engine type
F4GE9484J*60
Engine power
88 kW

More technical details, like: transmission type, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement...

More technical details, like: transmission type, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
