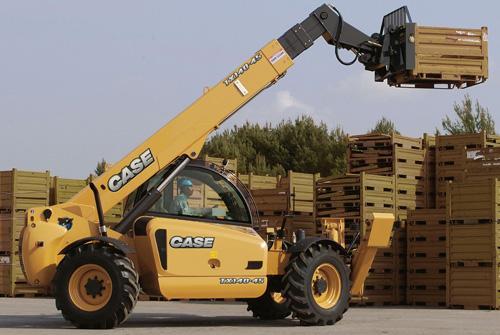

TX140-45 Case Telehandler Specs & Dimensions (2008 - 2016)

The Case TX140-45 Telehandler, manufactured from 2008 to 2016, weighs 11.46 tons and has a transport length of 6.07 meters. It has…

The Case TX140-45 Telehandler, manufactured from 2008 to 2016, weighs 11.46 tons and has a transport length of 6.07 meters. It has a maximum horizontal reach of 9.33 meters and a lifting height of 13.55 meters. The nominal load at the center of gravity is 4.5 tons, and it has a capacity of 1.5 tons at full forward reach and 3.6 tons at full lift height. The telehandler has a center of gravity at 500 mm and a travel speed of 35 km/h. Its transport width is 2.445 meters, and the transport height is 2.45 meters.

Telehandlers Case TX140-45

Visit Case live at

Technical specs - TX140-45 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4.5 t
Model series
TX
Centre of gravity
500 mm
Standard tyres
400/70x25
Max. Reach horizontal
9.33 m
Capacity at full forward reach
1.5 t
Lifting height
13.55 m
Capacity at full lift height
3.6 t
Weight
11.46 t
Transport length
6.07 m
Transport width
2.445 m
Transport height
2.45 m
Travel speed
35 km/h
Engine manuf.
CNH
Engine type
F4GE9484J*60
Engine power
88 kW

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, tyre - front size, tyre 2 - front size option, tyre 3 - front size option, service brake - type, service brake - location, dimension configuration, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
