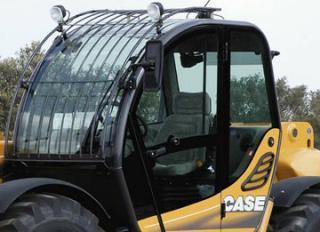

TX130-43 Case Telehandler Specs & Dimensions (2005 - 2008)

Name: Case TX130-43 Telehandlers
Brand: Case

The Case TX130-43 Telehandler, manufactured from 2005 to 2008, weighs 10.4 tons and has a transport length of 5.85 meters. It has …

The Case TX130-43 Telehandler, manufactured from 2005 to 2008, weighs 10.4 tons and has a transport length of 5.85 meters. It has a maximum horizontal reach of 8.65 meters and a lifting height of 12.45 meters. The nominal load at the center of gravity is 4.3 tons, and it has a capacity of 1.7 tons at full forward reach and 3.6 tons at full lift height. The center of gravity is located at 500 millimeters. It has a travel speed of 35 km/h and a transport width and height of 2.445 meters and 2.45 meters, respectively.

TX130-43

Years of manufacture: 2005—2008

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TX130-43 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4.3 t

Model series: TX

Centre of gravity: 500 mm

Standard tyres: 400/70x20

Max. Reach horizontal: 8.65 m

Capacity at full forward reach: 1.7 t

Lifting height: 12.45 m

Capacity at full lift height: 3.6 t

Weight: 10.4 t

Transport length: 5.85 m

Transport width: 2.445 m

Transport height: 2.45 m

Travel speed: 35 km/h

Engine manuf.: CNH

Engine type: 4TAA4.5

Engine power: 82 kW

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, engine output - net, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, reach - at maximum lift height, stabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
