Explorer H 35 DA Mast Rough Terrain Forklift Specs & Dimensions (2008 - 2013)

Model rating
0,00 / 10

Nominal load at COG: 3.5t – Centre of gravity: 500mm – Standard tyres: 400-15.5 – Transmission type: HY – Weight: 5.78t – Total wi…

Nominal load at COG: 3.5t – Centre of gravity: 500mm – Standard tyres: 400-15.5 – Transmission type: HY – Weight: 5.78t – Total width: 1.750m

Rough terrain forklift Explorer H 35 DA manufactured by Mast, production years (2008 - 2013). Explore detailed Explorer H 35 DA all terrain forklift: technical details, table charts and data sheets to download. Check also the other models produced by Mast.

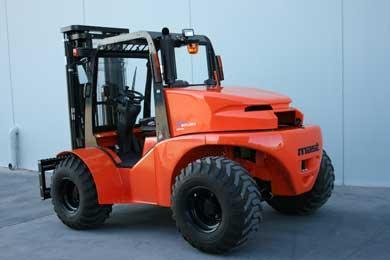

Rough Terrain Forklifts Mast Explorer H 35 DA
Rough Terrain Forklifts Mast Explorer H 35 DA
Rough Terrain Forklifts Mast Explorer H 35 DA
Rough Terrain Forklifts Mast Explorer H 35 DA
Rough Terrain Forklifts Mast Explorer H 35 DA
Rough Terrain Forklifts Mast Explorer H 35 DA
Rough Terrain Forklifts Mast Explorer H 35 DA
Rough Terrain Forklifts Mast Explorer H 35 DA

Technical specs - Explorer H 35 DA Mast

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.5 t
Centre of gravity
500 mm
Standard tyres
400-15.5
Transmission type
HY
Weight
5.78 t
Total width
1.750 m
Construction height
2.160 m
Lifting height
4.3 m
Engine manuf.
Perkins
Engine type
804D-33
Engine power
47.1 kW

More technical details, like: travel speed with / without load, hoisting with / without load, lowering with load, max. climbing ability, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Special equipment

StVZO Equipment
No

Download datasheets (PDF)

Mast Explorer H 35 DA overview

Drive

Standard features

5-function hydraulic joystick Full road lights Hinged wing mirrors Automatic locking of differential Automatic starter 1200 mm forks Comer differential axles with mechanical parking brake and oil-bathed disc service brake Linde automotive hydrostatic transmission with top-quality variable displacement engine Parker double-barrel gear pump Cooling system for the hydrostatic transmission that is totally independent from the engine Double hydraulic/hydrostatic oil tank Sauer-Danfoss power steering.


Handling

Simplicity

No electronic elements Machine components easily accessible, thereby guaranteeing quick maintenance Components of well-known worldwide prestige No plastic elements.


Safety

Safety

Emergency stop Exhaust vent with double muffler Soundproofed cabin compartment Maximum chassis robustness and resistance.


Versatility

Three-stage masts with 4 cylinders and integrated side shifter for maximum visibility Wide range of attachments available Large variety of masts.


Cabinc & Equipment

Ergonomics

Fully adjustable steering column, both height and depth Standard Grammer brand asymetric seat with 5 adjustments.
