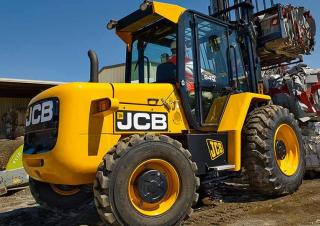

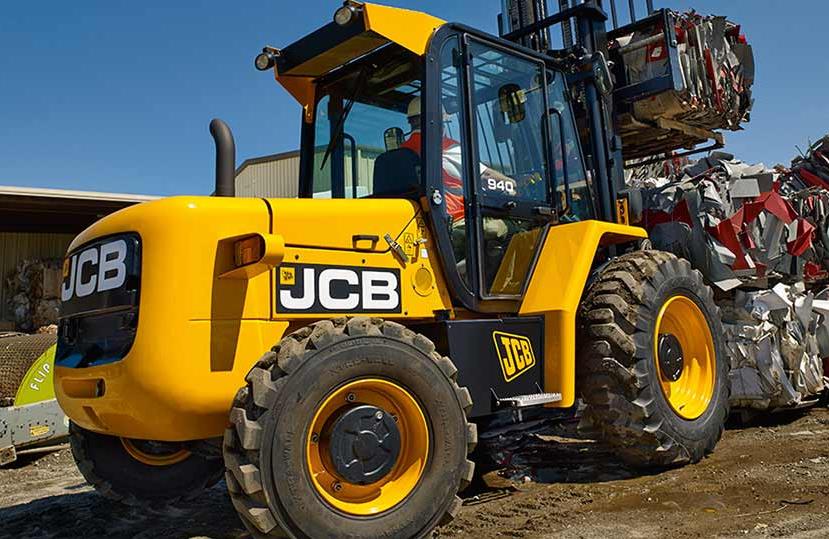

940 JCB Rough Terrain Forklift Specs & Dimensions (2014 - 2020)

Name: JCB 940 Rough Terrain Forklifts
Brand: JCB

Nominal load at COG: 4t – Centre of gravity: 500mm – Standard tyres: 16.5/85-24 – Transmission type: W – Weight: 7.5t – Total widt…

Nominal load at COG: 4t – Centre of gravity: 500mm – Standard tyres: 16.5/85-24 – Transmission type: W – Weight: 7.5t – Total width: 2.2m

Rough terrain forklift 940 manufactured by JCB, production years (2014 - 2020). Explore detailed 940 all terrain forklift: technical details, table charts and data sheets to download. Check also the other models produced by JCB.

Visit JCB live at

940

Years of manufacture: 2014—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 940 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4 t

Centre of gravity: 500 mm

Standard tyres: 16.5/85-24

Transmission type: W

Weight: 7.5 t

Total width: 2.2 m

Construction height: 2.8 m

Lifting height: 3.6 m

Travel speed with / without load: 29.7 km/h

Model series: 940

Engine manuf.: JCB

Engine type: EcoMax TCAE

Engine power: 55 kW

Displacement: 4.4 l

Revolutions at max torque: 1300 rpm

Max. torque: 400 Nm

Cylinder bore x stroke: 103x132 mm

More technical details, like: hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, no. of cylinders, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Special equipment

StVZO Equipment: Yes
