Nominal load at COG: 41t – Centre of gravity: 1749mm – Standard tyres: 18.00 - 25 40PR/18.00 - 25 40PR – Weight: 74.663t – Total w…
Nominal load at COG: 41t – Centre of gravity: 1749mm – Standard tyres: 18.00 - 25 40PR/18.00 - 25 40PR – Weight: 74.663t – Total width: 3.703m – Construction height: 9.357m

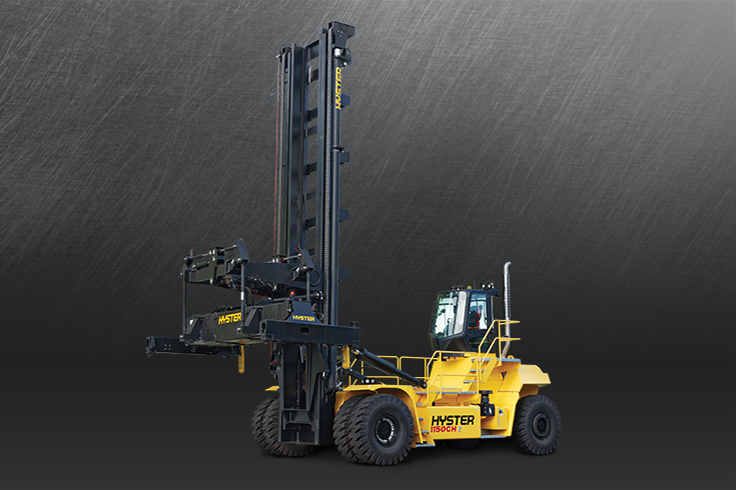

Rough terrain forklift H1050XD-CH manufactured by Hyster, production years (2022 - 2026). Explore detailed H1050XD-CH all terrain forklift: technical details, table charts and data sheets to download. Check also the other models produced by Hyster.
More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
Cummins X12 diesel engine rated 355 hp Tier 4 / 265 kW Stage V. Cummins X12 diesel engine rated 335 hp Tier 3 / 250 kW Stage IIIA. Tier 4 / Stage IV compliant. Tier 3 / Stage IIIA compliant. Wastegate turbocharger, water cooled. Hibernate Idle. On-demand cooling fan. 120 amp alternator. Performance modes selectable in Integrated Performance Display. Heavy duty air intake. Spicer Off-Highway TE-30 5-speed auto-shifting transmission. Kessler D102 drive axle with wet disc brakes. Kessler D102 extra wide drive axle with wet disc brakes (mandatory for 6-high).
Handling
Handling
CANBus Spreader, Hyster Model 818 with Gantry carriage. CANBus spreader controls. Mechanical Pile Slope. Powered Pile Slope. Wide Twistlock Position (WTP) container handling spreader. 4 lifting eyes located on end beam corners. 4 lifting eyes located under center beam of spreader. Spreader Guides located 19.9" (506mm) inwards from center of spreader end beam. Automatic one-touch Extend/Retract (20'/40') for spreader. Mast Tilt Indicator - Mechanical. Stops for 30' containers. Stops for 20-40' containers. Overlowering protection. Additional overlowering protection (Interrupts lowering if twistlocks are not seated.)
Performance
Drive
Travel speed limiter - unconditional and customer adjustable. Travel speed limiter - loaded - based on container position, mast tilt and spreader slewing. 18.00-25 40PR Pneumatic Bias Ply drive and steer tires. 18.00-33 36PR Pneumatic Bias Ply drive and steer tires. 18.00-R25 Michelin XZM2 Plus Pneumatic Radial drive and steer tires. 18.00-R25 Goodyear Slick Radial drive and steer tires. 18.00-R36 Michelin XZM Pneumatic Radial drive and steer tires.
Safety
Operation
Air horn 112 dBA. Visible alarm – Amber strobe light, ignition activated. Audible alarm – Reverse direction activated. Forward motion alarm. Seatbelt interlock for engine start and truck operation. Green seatbelt indicator light on top of operator cabin. Hydraulic load weighing system.
Basic dimensions
Lift
Hydraulic System with Triple Gear Pump. On-Demand Load Sensing Hydraulic System. Automatic Throttle-up when lifting (in neutral or inching). 2 Stage Non Free Lift mast for 3-high stacking. 2 Stage Non Free Lift mast for 4-high stacking. 2 Stage Non Free Lift mast for 5-high stacking. 2 Stage Non Free Lift mast for 6-high stacking. Mast tilt - 6° Forward / 8° Back. Mast tilt - 6° Forward / 10° Back. Hydraulic Accumulator. Hydraulic system temperature protection with performance de-rate.
Cabinc & Equipment
Ergonomics
Enclosed operator cabin. Auto Tip-Up Cabin 10°. Isolated cabin mounting for low noise and vibration. Mechanical suspension seat. Air suspension seat. Deluxe air suspension seat. Low backrest seat. High backrest seat. Armrest on left side.
