7FGCU25 Toyota LPG Forklift Specs & Dimensions (2001 - 2008)

Nominal load at COG: 2.25t – Centre of gravity: 600mm – Standard tyres: Front: 21 x 7 x 15 / Rear: 16 x 5 x 10-1/2 – Weight: 3.72t…

Nominal load at COG: 2.25t – Centre of gravity: 600mm – Standard tyres: Front: 21 x 7 x 15 / Rear: 16 x 5 x 10-1/2 – Weight: 3.72t – Total width: 1065mm – Construction height: 2115mm

Toyota is the manufacturer of the 7FGCU25 LPG forklift. The production years for this model are (2001 - 2008). Find here detailed specs for 7FGCU25 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Toyota.

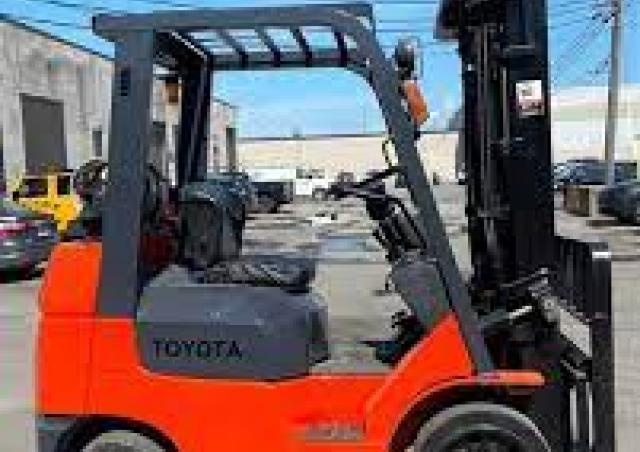

LPG Forklifts Toyota 7FGCU25

Technical specs - 7FGCU25 Toyota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.25 t
Centre of gravity
600 mm
Standard tyres
Front: 21 x 7 x 15 / Rear: 16 x 5 x 10-1/2
Weight
3.72 t
Total width
1065 mm
Construction height
2115 mm
Turning radius
1.97 m
Lifting height
3.34 m
Travel speed with / without load
17.0/17.0 km/h
Hoisting with / without load
0.60/0.64 m/s
Lowering with load
0.5 m/s
max. climbing ability
31 %
Engine manuf.
Toyota
Engine type
4Y
Engine power
35 kW
Displacement
2.237 l
Revolutions at max torque
1800 rpm
Max. torque
160 Nm
No. of cylinders
4

More technical details, like: transmission type, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
