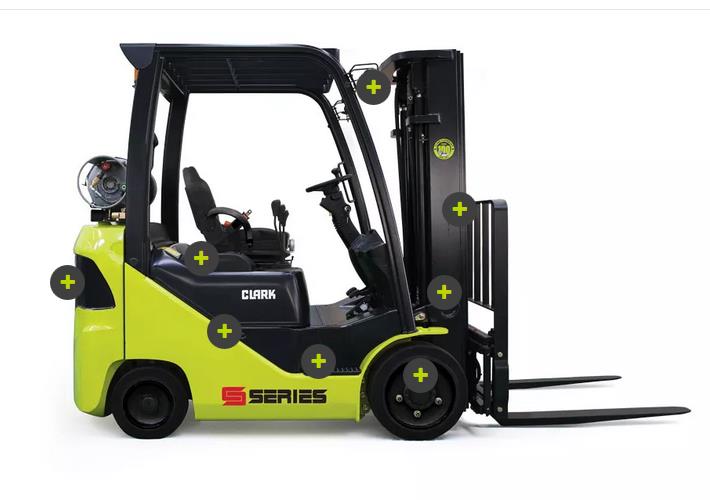

S32C L Clark LPG Forklift Specs & Dimensions (2018 - 2026)
Nominal load at COG: 3.2t – Centre of gravity: 500mm – Standard tyres: 2x/2 – Transmission type: HY – Weight: 4.428t – Total width…
Nominal load at COG: 3.2t – Centre of gravity: 500mm – Standard tyres: 2x/2 – Transmission type: HY – Weight: 4.428t – Total width: 1155mm
Clark is the manufacturer of the S32C L LPG forklift. The production years for this model are (2018 - 2026). Find here detailed specs for S32C L LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Clark.
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
The CLARK S-Series forklifts with LPG power offer excellent acceleration and performance power. These modern engines are efficient and at the top end of the performance class. Temperature from the engine and transmission is constantly monitored and in the event of design limits being exceeded the engine is automatically shut-down. Rubber mounted transmission and drive axle, separated by a heavy duty flexible coupling, reduces vibrations and noise to a minimum.
Steering system
Hydrostatic power steering eliminating steering kick-back. A robust steering axle with pivotal bearings in mounted rubber steel moulded mounting.
Brake system
Maintenance free wet disc service brakes. Power assisted service brake for easier brake operation with more effect. Automatic parking brake.
Handling
Hydraulic system
Full-flow reverse filter, filters the oil to the tank at each reverse flow. Rough particles are filtered directly via a suction filter, thereby preventing them from entering the oil circuit, ensuring a long service life for all hydraulic components. Large hydraulic oil tank makes sure that there is always enough hydraulic oil available for the highest upright and all attachments. A safety valve provides extra safety and prevents an uncontrolled load lowering at all times.
Upright
The clear-view uprights are available in Standard, HiLo, Triplex and Quad versions. Perfect view through extra-wide masts, narrow centre cylinders and optimum mast design. Adjustable sealed canted (Angled) rollers minimize deflection. Spherical mounted tilt cylinders bearings. An integral tilt-lock valve prevents mast tilt drift. Robust 6-roller fork carriage with adjustable side thrust rollers for durability. A CLARK hydraulic dampening system reduces impacts and vibrations during the transition between the individual lifting sections in raising and lowering, thus protecting the products and extending service life.
Safety
Smart–Display
Clear and easy-to-read 5-inch colour display. Protected against water ingress. Maintenance indicator and password-protected service access. Selection of different warning signs (optical / acoustic).
Cabin & Equipment
Product Description
The S-Series from CLARK marks a further development in reliable, durable and powerful forklifts. Lower operating and maintenance costs combined with a well-designed and ergonomic operator compartment are what makes this forklift truly unique.
Fuel efficiency truck management options
Automatic engine shut down timer for excessive engine idling. Automatic light switch-off. The setting for each shutdown function can be activated on demand and will be set after operator has left the driver seat. The shutdown timer delay is adjustable.
