    Technical specs - GTS30 L Clark

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 3 t
    Standard tyres 2x/2
    Centre of gravity 500 mm
    Transmission type HY
    Weight 4.22 t
    Total width 1250 mm
    Construction height 2180 mm
    Turning radius 2.48 m
    Lifting height 3.195 m
    Travel speed with / without load 18.3/19.5 km/h
    Hoisting with / without load 0.52/0.56 m/s
    Lowering with load 0.54/0.5 m/s
    max. climbing ability 29/19.9 %
    Engine manuf. Mitsubishi
    Engine type 4 G 64
    Engine power 51.6 kW
    Engine power ###
    Dimension lxwxh ###
    Displacement ###
    Revolutions at max torque ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###
    Emission level ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

    RAVAS iForks-32 weight scaling solution for your Clark GTS30 L

    RAVAS iForks-32

    Successful RAVAS scale forks

    Fit iForks for your Clark GTS30 L and realise immediate cost savings


    Gross/net weighing

    Totalling with sequence number

    Weight data transfer to smart phone, tablet, handheld and WMS/ERP system


    Installation within 5 minutes

    Completely wireless with digital calibration

    More information

    Download data sheets - Clark GTS30 L


    What do you think about this machine?

    Compare Clark GTS30 L with other models

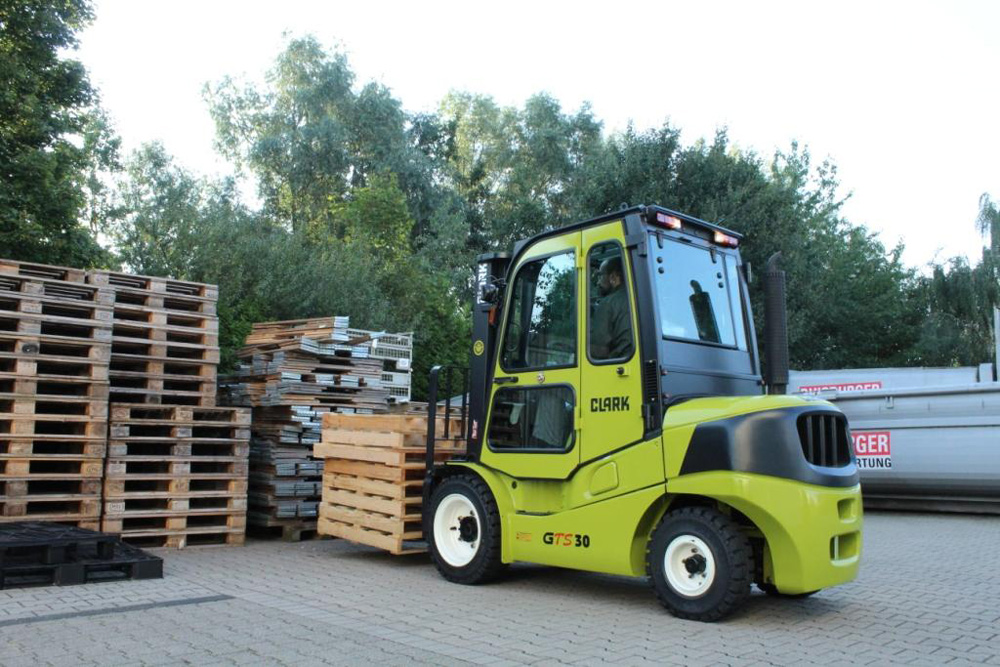

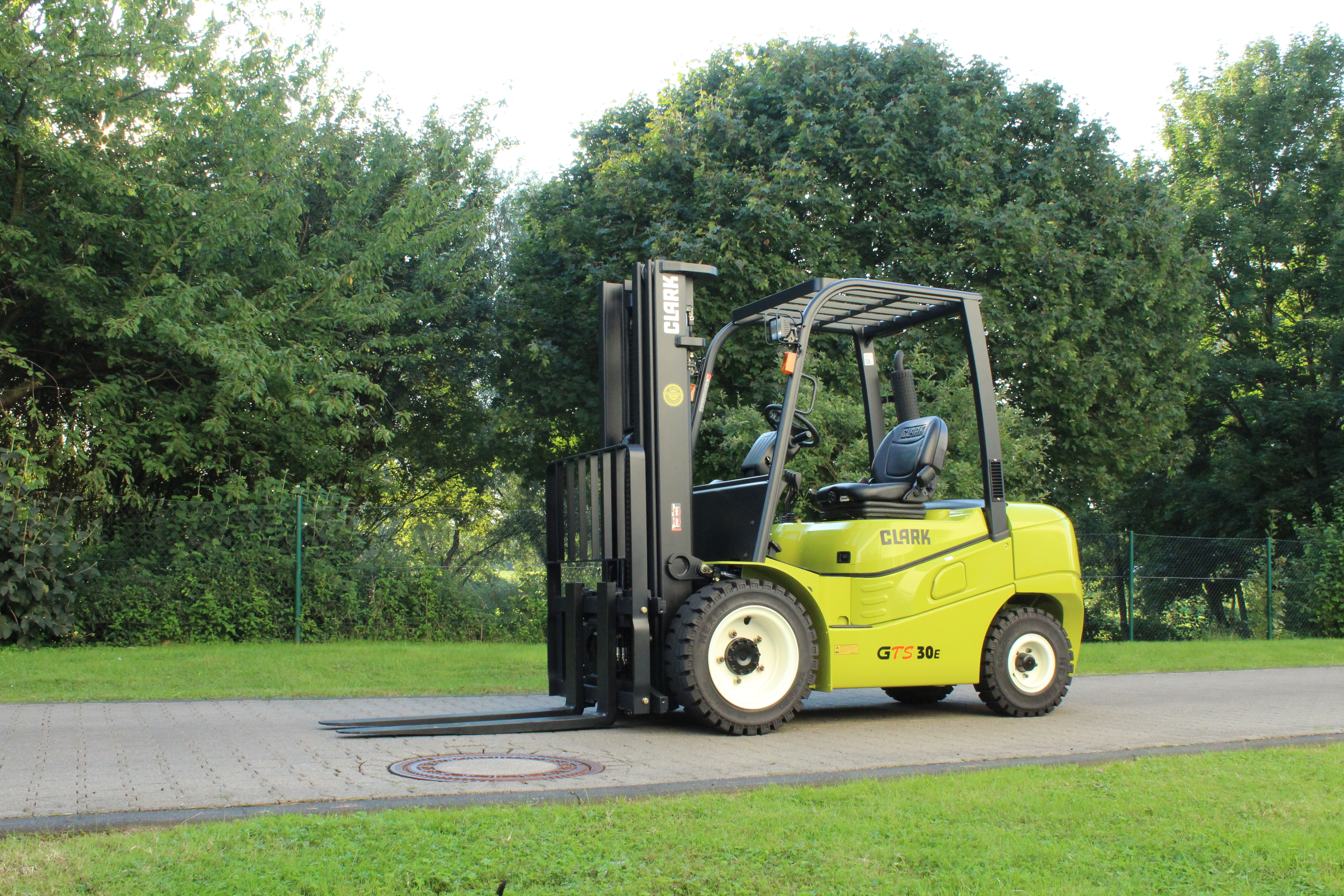

    Press 1 image
