FB20RZ Yale electric forklift specs & dimensions (2021 - 2026)

Nominal load at COG: 2t – Standard tyres: Front: 7.00-12-12 / Rear: 18x7-8-10 – Total width: 1160mm – Construction height: 2120mm …

Nominal load at COG: 2t – Standard tyres: Front: 7.00-12-12 / Rear: 18x7-8-10 – Total width: 1160mm – Construction height: 2120mm – Centre of gravity: 500mm – Voltage: 48V

Yale is the manufacturer of the FB20RZ electric forklift. The production years for this model are (2021 - 2026). Find here detailed specs for FB20RZ electric powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

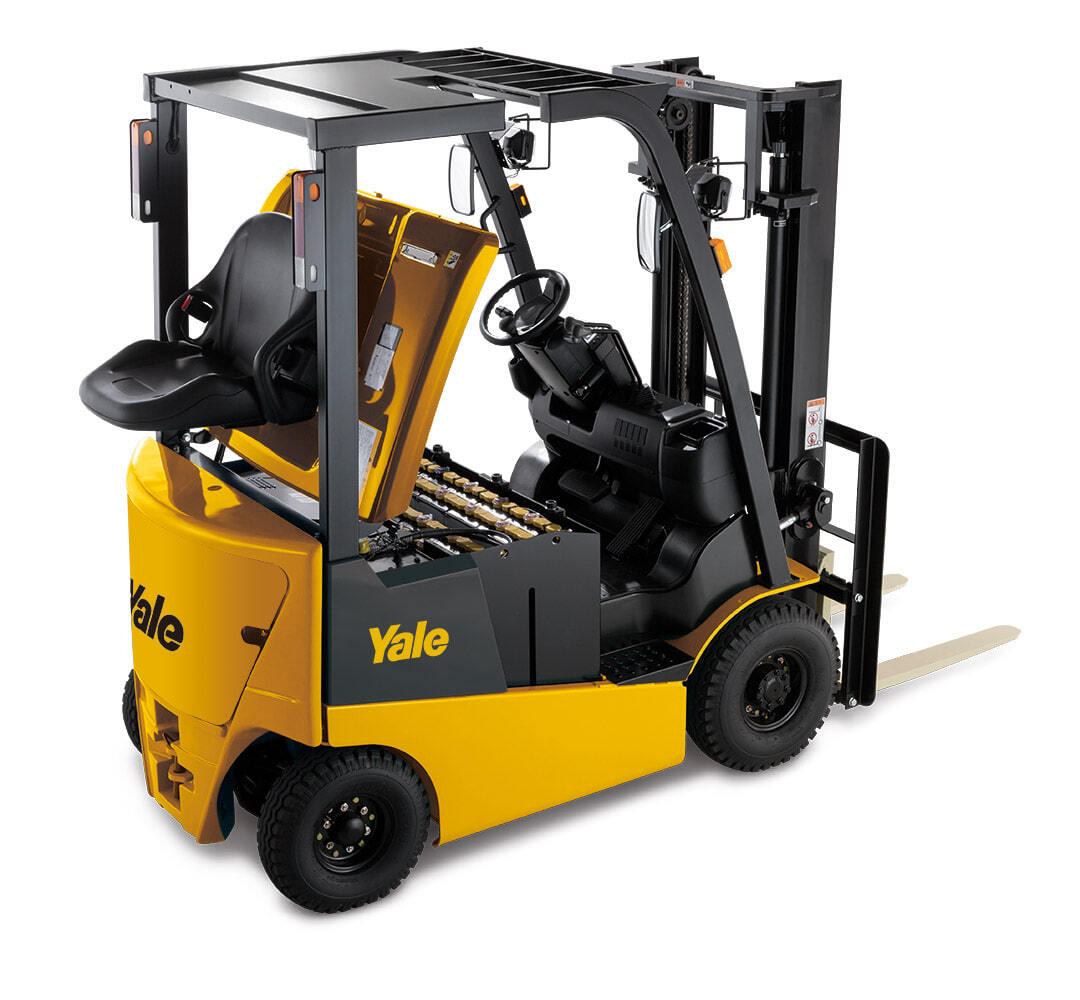

Electric forklifts Yale FB20RZ

Visit Yale live at

Technical specs - FB20RZ Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Standard tyres
Front: 7.00-12-12 / Rear: 18x7-8-10
Total width
1160 mm
Construction height
2120 mm
Centre of gravity
500 mm
Voltage
48 V
Traction motor
8.3 kW
Hoist motor
9.6 kW
Weight
4.16 t
Battery weight
0.73 t
Turning radius
1.99 m
Lifting height
3.02 m
Travel speed with / without load
14/15 km/h
Hoisting with / without load
0.38/0.61 m/s
Lowering with load
0.5 m/s
Model series
FB

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel
