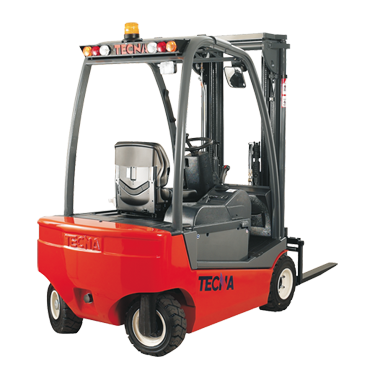

T 16 Tecna electric forklift specs & dimensions (2000 - 2013)

Transmission

The front two drive motors are carried out by means of independent and separate transmissions with gears constantly connected with inside a bath of oil. The steady conjunctions with easy access are perfectly protected in its position, by the chassis.

Steering Axle

The steering axle gives a turning radius of 180°, identical to the three wheeler one, but with the stability and safety of one 4 wheels.

Hydraulic System

The big reservoir for hydraulic oil is integrated to the frame structure, due to which the liquid refrigeration is aided to a great extent from this configuration. The sections for oil conduction are short, without curves, and no prerequisites for energy loss from rubbing or friction heating are generated. It incorporates safety valves in elevation and descent, as well as auxiliary valves for overpressure. In the lifting unit, there is an anti-cavity system, and in the retard circuit, a filter of 25 microns is incorporated. The main hydraulic valve may incorporate one 4th function and auxiliary electrovalves.

Brakes

The front axle brakes are a multi-disc system in a constant bath of oil, actuated by a pedal of "automotive" type, ensuring long life without maintenance. It features electronic braking with energy recovery, a hand brake for parking, and a proportional electronic brake.

Upright

Upright Duplex, Duplex FL and Triplex FL., one perfect GRAN VISION (new generation). Integral side shifter as Standard.

Frame

The frame designed by means of a computer using the system for finite methods, forms a very stable and robust set, integrating also the motors and the steering axle. Its low profile provides an optimal center of gravity of the forklift, which besides its good appearance, secures a high safety rate of these machines.

Battery

The serial battery Tecna perfectly fits its place, fixed in operating position by means of a well designed access, which secures protection from the truck roof to the driver. For that reason its extraction and placement back is realized in very short time.

Ergonomics

Operator compartment with the same dimensions as those of a greater tonnage. Manipulation is done by means of a joystick (option – levers). It features a great comfort seat with a safety belt, weight adjustment, and height and leaning-back positioning. An arm-rest is included, along with an LCD display that provides constant control of the machine functions. The OHG height is 2.065 mm for T16/18, 2.90 mm for T20, and 2.215 mm for T20H, adjustable for tall stature.
