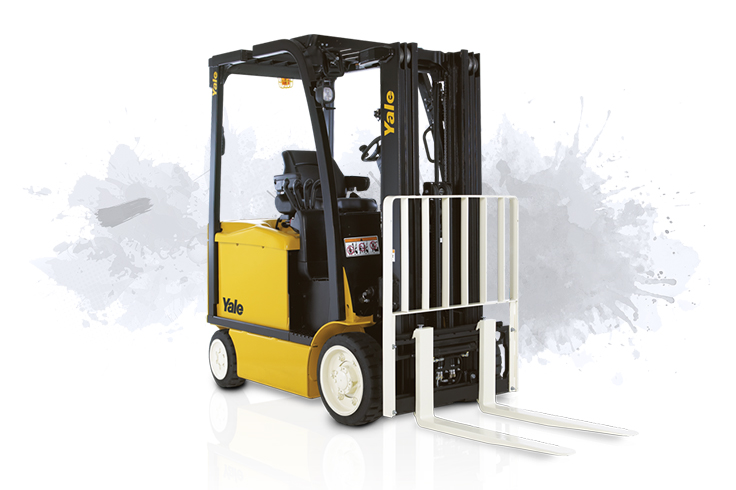

ERC32VG LWB Yale electric forklift specs & dimensions (2022 - 2026)

AC Technology

AC technology Class H traction motors with transistor controller suitable for the most arduous applications. Smooth forward and reverse directional changes provide seamless driving action.

Brakes

The automatic park brake is applied when the truck stops and is de-activated once the accelerator pedal is pressed, providing increased controllability in ramp applications.

Steering

The AC motor drives a pump providing oil pressure for all the hydraulic functions including steering. The adjustable steering column is mounted on the truck’s cowl providing unrestricted floor space. The maintenance free Continuous Stability Enhancement system (CSE) optimizes steer axle geometry to reduce truck lean by limiting articulation. Transmission of shocks and vibrations to the operator and load when travelling over uneven ground conditions are reduced.

Low lifetime costs

Lower maintenance costs are achieved primarily through the use of Hall Effect sensors, ‘O’ Ring face seals, an electric park brake, CANbus and AC Technology. Auto-regenerative braking reduces service brake usage contributing to an increase in component life. 1000 hours service intervals are standard on most components.

Options

AccuTouch™ mini-levers Return to Set Tilt Foot directional control Lighting kits, including LED lights Reverse alarm Integrated side-shifting fork positioner carriage Custom batteries Audible back up alarm Visible alarm strobe Load weight indicator Impact sensor Swivel full suspension seats (cloth/ vinyl).

Wheelbase

Depending on capacity there are three options allowing the truck to be tailored to the application requirements: Short Wheelbase ERC 22VC/25VC - 375 Ah Medium Wheelbase ERC 22VC/25VC/30VG - 450 Ah Long Wheelbase ERC 32VC/35VG - 600 Ah.

Ergonomics

The operator is positioned ergonomically for safety, comfort, visibility and ease of access. Whole Body Vibration (WBV) transmitted to the operator is reduced by the full suspension seat, providing a comfortable working environment, reducing fatigue and increasing productivity. A low intermediate anti-slip step, clear footwell and generous floorspace with non-slip rubber floor mat provide easy ‘on’ and ‘off’ access from both sides. Front and rear (with horn) operator grab handles aid entry and driving in reverse. Contoured manual levers are standard. A ‘Forward/Reverse’ direction switch is integrated into the hoist lever with an emergency stop button and horn located in the manual lever console.

AccuTouch mini-lever module (MLM)

The AccuTouch mini-lever module (MLM) provides intuitive operation of all control functions with a cushioned arm and palm rest and mini levers for fingertip control. Travel direction is displayed on the ‘heads up’ display. ‘Return to set tilt’ and ‘4th function with clamp’ options are integrated into the MLM, alleviating operator fatigue when aligning forks for load drop and retrieval. The ‘heads up display’, located on the overhead guard, improves the operator's field of vision for more productive load handling. Truck status and critical functions can be easily checked, including: Battery charge condition Hours worked Direction of travel Steer wheels position Performance setting Motor temperature Low brake fluid Seat belt reminder Time. The dashboard has storage space including a clipboard holder as well as light switches and an optional 12V socket.
