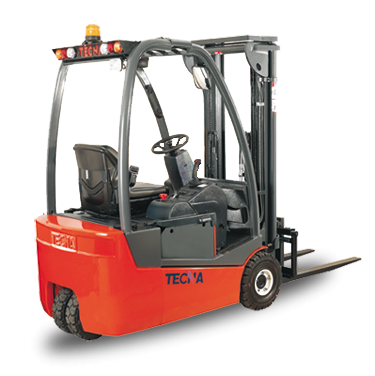

TR 13 Tecna electric forklift specs & dimensions (2000 - 2014)

Manoeuvrability

A fast and easy steering with a small turning radius gives the truck a high grade of manoeuvrability very difficult to beat.

Motors and Technologies

The drive motors, as well as the hydraulic one are AC, class F with protection IP20, without carbon brushes nor collector, and are prepared for the hardest applications. In case of contaminated atmosphere, they are dust and dirtiness resistant. The availability for selection of systems with different output gives acceleration and one very good lifting capacity. This is one of the greatest advantages of AC. This technology permits the machine components to be revised and checked at longer periods of time, which significantly reduces the costs for maintenance.

Transmission

One single drive motor, in the back of the truck, with one single tyre 18.7.8 (Front tyres are the same size). The drive motor, drive transmission, and steering axle are in one single set; however, the motor remains fixed without any kind of movement. The motor is well protected in electronics housing, and the total rear axle is protected by the counterweight.

Steering Axle

The steering axle incorporates, as a new feature, a turning radius up to 185°s/26, which permits improved maneuvering compared to traditional three-wheeled forklift trucks. The axle has two identical wheels of 16°6, which significantly improves the stability and maintenance of the rear axle.

Brakes

The front axle brakes are a multidisc system in constant bath of oil, actuated by a pedal of «automotion» type, providing long life without maintenance. It features electronic braking with energy recovery, a hand brake for parking, and a proportion electronic electric brake.

Upright

Upright Duplex, Duplex F.L. and Triplex F.L., one perfect GRAN VISION (new generation). Integral side shifter as Standard.

Hydraulic System

The big reservoir for hydraulic oil is integrated to the frame structure, due to which the lifted refrigeration is added to a great extent from its cooling system. The sections for oil conduction are short, without curves, and no prerequisites for energy loss from rubbing or friction heating are generated. It incorporates safety valves in elevation and descent, as well as auxiliary valves for overpressure. In the tilting circuit, there is an anti-cavity system. Additionally, in the direct circuit, a filter of 25 microns is incorporated. The main hydraulic valve may incorporate one 4th function and auxiliary electrovalves.

Security

Operation control system for speed reduction at curves (Anti turning). System for lift speed reduction control (Anti turning). (Optional). System for speed reduction control in determined areas (High Security). (Optional).

Frame

The frame designed by means of a computer using the system for finite methods, forms a very stable and robust set, integrating also the motors and the steering axle. Its low profile provides an optimal center of gravity of the forklift, which besides its good appearance, secures a high safety rate of these machines.

Battery

The serial battery TECNA perfectly fits its place, fixed in operating position by means of a well designed access, which secures protection from the truck for the driver. For that reason its extraction and placement back is realized in very short time.

Ergonomics

Operator compartment with the same dimensions, as those of a greater tonnage. Manipulation by means of Joystic (option – levers). Great comfort seat safety belt, weight adjustment and height and leaning-back positioning. LCD display with constant control of the machine functions. The OHG height is 2.073 mm, adjustable tall stature.

Display

Display with digital hour meter, battery indicator and constantly providing the driver information on the system conditions of the truck. P.M service count - down. Programmable for optimum adaptation of truck characteristics to the operation request (Acceleration, speed, deceleration, braking, etc.) Diagnosis information and warning indicators.

Driving

The forklift truck operation has exceptional ergonomic conditions. Easy access to operator compartment due to its low height of construction (550 mm). The steering column multi-positioning and the seat adjusted in height and resting, allows adaptation to the body characteristics of each person. The pedals are of automation type making easy the adaptation of driving the truck. The Joystic, easy accessible, permits very sensible control of lifting tilting sideshift. The hydrostatic steering is operated without any effort, the system for actuating the pump functions only is required by the movement, thus guaranteeing great energy saving. The vector control system permits easy changing, from forward to reverse, and offering easy and smooth dynamic operation. The noise level in operator's ears is according to Standard DIN 12 053 < 65 dB.
