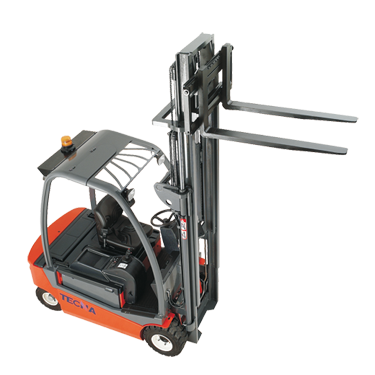

T 20 Tecna electric forklift specs & dimensions (2000 - 2013)
Nominal load at COG: 2t – Standard tyres: SE 2x/2 – Total width: 1130mm – Construction height: 2176mm – Centre of gravity: 500mm –…
Nominal load at COG: 2t – Standard tyres: SE 2x/2 – Total width: 1130mm – Construction height: 2176mm – Centre of gravity: 500mm – Voltage: 80V
Tecna is the manufacturer of the T 20 electric forklift. The production years for this model are (2000 - 2013). Find here detailed specs for T 20 electric powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Tecna.
All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel
The front two drive motors are carried out by means of independent and separate transmissions with gears constantly connected with inside a bath of oil. The steady conjunctions with easy access are perfectly protected in its position, by the chassis.
Brakes
The front axle brakes are multi-disc system in constant bath of oil, actuated by a pedal of automotive type heaving long life without maintenance. Electronic braking with energy recovery. Hand brake for parking. Proportional electronic brake.
Battery
The serial battery Tecna perfectly fits its place, fixed in operating position by means of a well designed access, which secures protection from the truck roof to the driver. For that reason its extraction and placement back is realized in very short time.
Handling
Upright
Upright Duplex, Duplex FL and Triplex FL., one perfect GRAN VISION (new generation). Integral side shifter as Standard.
Safety
Steering Axle
The steering axle gives a turning radius of 180°, identical to the three wheeler one, but with the stability and safety of one 4 wheels.
Hydraulic System
The big reservoir for hydraulic oil is integrated to the frame structure, due to which the liquid refrigeration is aided to a great extent from this configuration. The sections for oil conduction are short, without curves, and no prerequisites for energy loss from rubbing or friction heating are generated. It incorporates safety valves in elevation and descent and auxiliary valves for overpressure. In the lifting unit, there is an anti-cavity system. In the retard circuit, a filter of 25 microns is incorporated. The main hydraulic valve may incorporate one 4th function and auxiliary electrovalves.
Frame
The frame designed by means of a computer using the system for finite methods forms a very stable and robust set, integrating also the motors and the steering axle. Its low profile provides an optimal center of gravity of the forklift, which, besides its good appearance, secures a high safety rate of these machines.
Cabin & Equipment
Ergonomics
Operator compartment with the same dimensions as those of a greater tonnage. Manipulation is done by means of a joystick (option – levers). The seat offers great comfort with a safety belt, weight adjustment, and height and leaning-back positioning. An armrest is included, and there is an LCD display that provides constant control of the machine functions. The OHG height is 2.065 mm for T16/18, 2.90 mm for T20, and 2.215 mm for T20H, adjustable for tall stature.
