A1.3XNT Hyster electric forklift specs & dimensions (2012 - 2019)

Nominal load at COG: 1.25t – Standard tyres: SE 2/1x – Total width: 996mm – Construction height: 2060mm – Centre of gravity: 500mm…

Nominal load at COG: 1.25t – Standard tyres: SE 2/1x – Total width: 996mm – Construction height: 2060mm – Centre of gravity: 500mm – Drive system: D

Hyster is the manufacturer of the A1.3XNT electric forklift. The production years for this model are (2012 - 2019). Find here detailed specs for A1.3XNT electric powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Hyster.

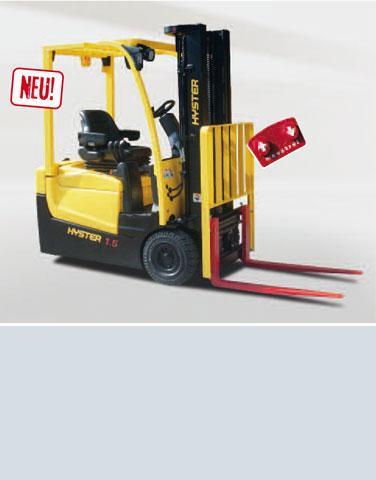

Electric forklifts Hyster A1.3XNT

Technical specs - A1.3XNT Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.25 t
Standard tyres
SE 2/1x
Total width
996 mm
Construction height
2060 mm
Centre of gravity
500 mm
Drive system
D
Voltage
24 V
Traction motor
4.7 kW
Hoist motor
6 kW
Weight
2.7 t
Battery weight
0.63 t
Turning radius
1.398 m
Lifting height
4.6 m
Travel speed with / without load
12/12.5 km/h
Hoisting with / without load
0.32/0.51 m/s
Lowering with load
0.5 m/s
Model series
A

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel

Download datasheets (PDF)

Hyster A1.3XNT overview

Handling

Productivity

24 volt rear-wheel drive with AC motors throughout provides smooth acceleration and excellent travel, torque and lifting performance. This is combined with regenerative braking to deliver efficient load handling. The AXNT is the most compact truck in its class, with the tightest turning circle for excellent manoeuvrability in working aisles (AST with 1000 x 1200mm pallet = 3107mm with 40mm thick forks). This allows the operator to move faster with more confidence in restricted spaces or congested loading/unloading bays. An overall truck width of 996mm facilitates block stacking wherever space is at a premium. The Vista Plus mast offers class leading visibility allowing the operator to work quicker when picking and depositing loads. 770-875Ah (1.25t) and 840-1000Ah (1.5t) batteries are available to ensure optimal shift life is achieved between charges.


Performance

Low Cost of Operation

Hyster intelligent design delivers the right balance (e-Balance) of performance, manoeuvrability and battery shift life, matched to the application, providing productivity and throughput at less cost. The eLo (Energy-Low) performance setting reduces energy costs, delivering the lowest energy consumption of 3.9kWh/h (1.25t) and 4.0 kW/h (1.5t) on the VDI 2198 test (45 cycles). The Vehicle System Manager (VSM) allows adjustment of truck performance parameters as well as monitoring key functions, leading to application matched performance and low maintenance.
