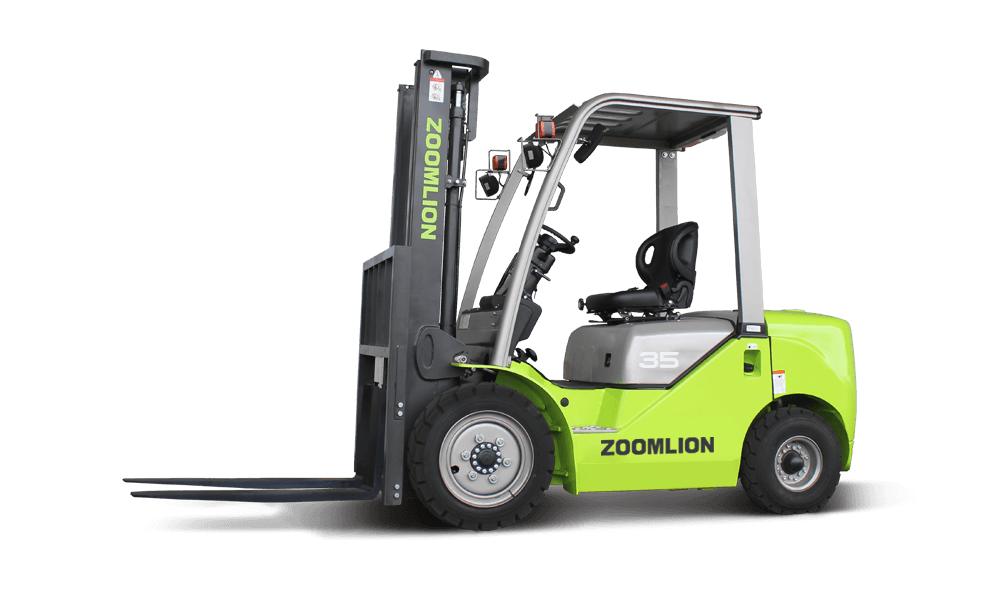

FD35H Zoomlion diesel forklift specs & dimensions (2023 - 2026)

Name: Zoomlion FD35H Diesel Forklifts
Brand: Zoomlion

The Zoomlion FD35H is a diesel forklift manufactured since 2023. It has a weight of 4.8 tons and a nominal load capacity of 3.5 to…

The Zoomlion FD35H is a diesel forklift manufactured since 2023. It has a weight of 4.8 tons and a nominal load capacity of 3.5 tons at the center of gravity. With a lifting height of 3 meters and a center of gravity at 500mm, it offers stability and precision. It can climb slopes with a maximum gradient of 20 percent. The hoisting speed is 0m/s with or without a load, while the lowering speed with a load is 0.6m/s. The forklift has a total width of 1230mm and can travel at a speed of 18km/h with or without a load. It has a turning radius of 2.445 meters, allowing for maneuverability in tight spaces. The construction height of the forklift is 2090mm.

FD35H

Years of manufacture: 2023—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - FD35H Zoomlion

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.5 t

Centre of gravity: 500 mm

Standard tyres: F: 28x9-15-12PR / R: 28x9-15-12PR

Weight: 4.8 t

Total width: 1230 mm

Construction height: 2090 mm

Turning radius: 2.45 m

Lifting height: 3 m

Travel speed with / without load: 18/20 km/h

Hoisting with / without load: 0.47/0.52 m/s

Lowering with load: 0.6 m/s

max. climbing ability: 20 %

Engine manuf.: Mitsubishi

Engine type: S4S-474

Engine power: 35.3 kW

Displacement: 3.331 l

No. of cylinders: 4

More technical details, like: transmission type, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

FD35H Zoomlion Specification for Global (EN)
