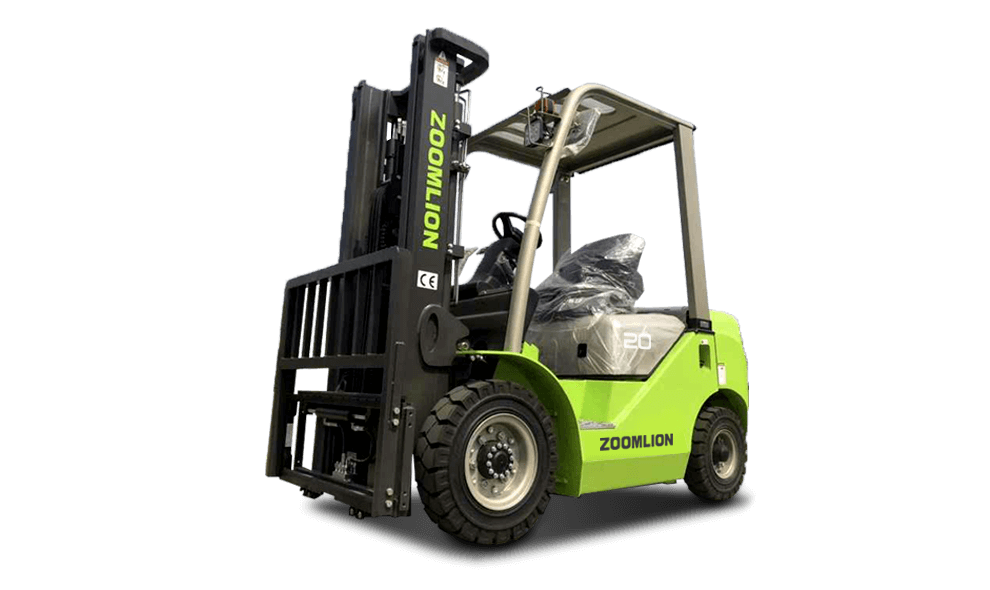

Zoomlion FD20H diesel forklift specs (2023 - 2023)
Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: R: 6.00-9-10PR / F: 7.00-12-12PR – Weight: 3.35t – Total widt... Read more
Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: R: 6.00-9-10PR / F: 7.00-12-12PR – Weight: 3.35t – Total width: 1160mm – Construction height: 2090mm
Zoomlion is the manufacturer of the FD20H diesel forklift. The production years for this model are (2023 - 2023). Find here detailed specs for FD20H diesel powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Zoomlion.
Technical specs - FD20H Zoomlion
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Nominal load at COG 2 t
- Centre of gravity 500 mm
- Standard tyres R: 6.00-9-10PR / F: 7.00-12-12PR
- Weight 3.35 t
- Total width 1160 mm
- Construction height 2090 mm
- Turning radius 2.24 m
- Lifting height 3 m
- Travel speed with / without load 18,0/20,0 km/h
- Hoisting with / without load 0,49/0,51 m/s
- Lowering with load 0.6 m/s
- max. climbing ability 20 %
- Engine manuf. Mitsubishi
- Engine type S4S-474
- Engine power 35.3 kW
- Displacement 3.331 l
- No. of cylinders 4
More technical details, like: average fuel consumption, fuel consumption range (min - max), transmission type, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
