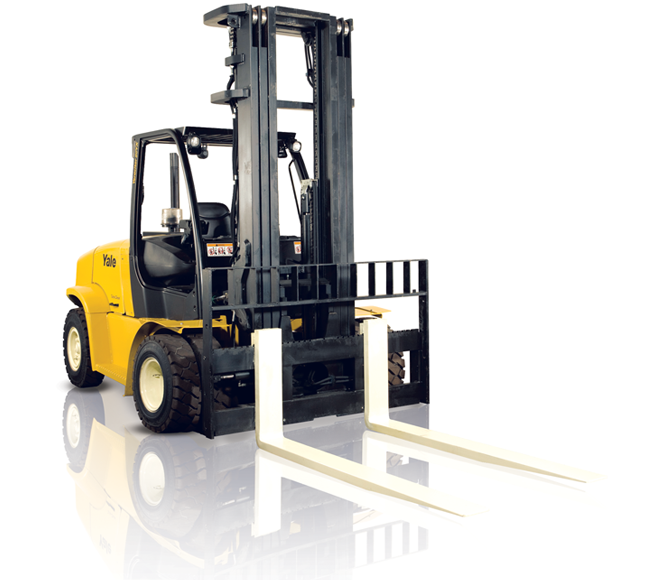

GDP80VX9 Value Yale diesel forklift specs & dimensions (2019 - 2026)
Visit Yale live at
Technical specs - GDP80VX9 Value Yale
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 8 t
- Centre of gravity
- 900 mm
- Standard tyres
- L 4x/2
- Transmission type
- W
- Weight
- 12.417 t
- Total width
- 2239 mm
- Construction height
- 2531 mm
- Turning radius
- 3.794 m
- Lifting height
- 3.065 m
- Travel speed with / without load
- 21.4/22.4 km/h
- Hoisting with / without load
- 0.32/0.34 m/s
- Lowering with load
- 0.41/0.37 m/s
- max. climbing ability
- 26 %
- Model series
- GDP
- Engine manuf.
- Kubota
- Engine type
- V3800
- Engine power
- 55 kW
- Displacement
- 3.769 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 308.5/1400 Nm
- No. of cylinders
- 4
- Emission level
- IV
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
