GDP160EF Yale diesel forklift specs & dimensions (2022 - 2026)

Nominal load at COG: 16.5t – Centre of gravity: 600mm – Standard tyres: 4x/2 – Weight: 19.459t – Total width: 2541mm – Constructio…

Nominal load at COG: 16.5t – Centre of gravity: 600mm – Standard tyres: 4x/2 – Weight: 19.459t – Total width: 2541mm – Construction height: 3110mm

Yale is the manufacturer of the GDP160EF diesel forklift. The production years for this model are (2022 - 2026). Find here detailed specs for GDP160EF diesel powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

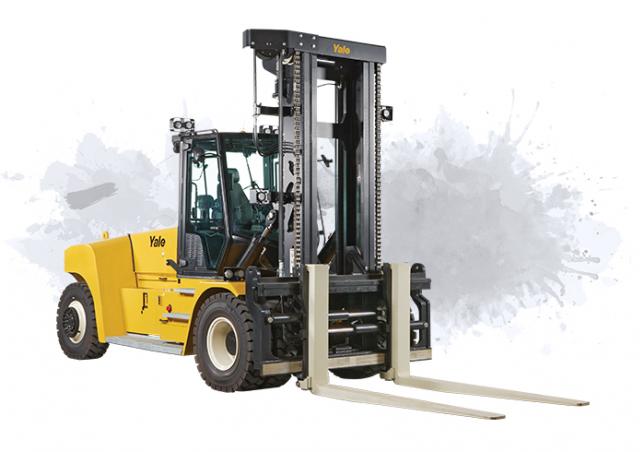

Diesel Forklifts Yale GDP160EF

Visit Yale live at

Technical specs - GDP160EF Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
16.5 t
Centre of gravity
600 mm
Standard tyres
4x/2
Weight
19.459 t
Total width
2541 mm
Construction height
3110 mm
Turning radius
4.584 m
Lifting height
4.91 m
Travel speed with / without load
27.1/28.9 km/h
Hoisting with / without load
0.37/0.44 m/s
Lowering with load
0.54/0.48 m/s
max. climbing ability
32 %
Model series
GDP
Engine manuf.
Mercedes-Benz
Engine type
OM934
Engine power
129 kW
Displacement
5.1 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
V

More technical details, like: transmission type, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
