GDP 60 VX Yale diesel forklift specs & dimensions (2008 - 2013)

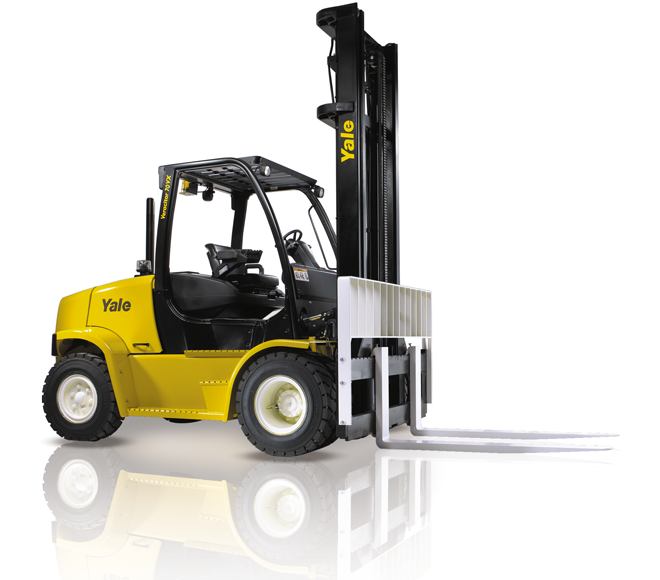

The Yale GDP 60 VX is a diesel forklift manufactured by Yale from 2008 to 2013. It has a weight of 8.52 tons and a nominal load at…

The Yale GDP 60 VX is a diesel forklift manufactured by Yale from 2008 to 2013. It has a weight of 8.52 tons and a nominal load at the center of gravity of 6 tons. The forklift can lift loads up to a height of 4.7 meters and has a center of gravity at 600 mm. It has a maximum climbing ability of 31.9 percent and a total width of 2082 mm. The turning radius of the forklift is 3.32 meters and it has a construction height of 2531 mm.

Diesel Forklifts Yale GDP 60 VX
Yale GDP 60 VX Dimensions and Size
Diesel Forklifts Yale GDP 60 VX
Yale GDP 60 VX Dimensions and Size

Visit Yale live at

Technical specs - GDP 60 VX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
6 t
Centre of gravity
600 mm
Standard tyres
L4x/2
Transmission type
W
Weight
8.52 t
Total width
2082 mm
Construction height
2531 mm
Turning radius
3.32 m
Lifting height
4.7 m
Travel speed with / without load
21.1/21.6 km/h
Hoisting with / without load
0.49/0.53 m/s
Lowering with load
0.56/0.43 m/s
max. climbing ability
31.9 %
Model series
GDP
Engine manuf.
Cummins
Engine type
4.5
Engine power
58 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
