GDP 160 EC Yale diesel forklift specs & dimensions (2012 - 2013)

The Yale GDP 160 EC is a diesel forklift manufactured by Yale from 2012 to 2013. It has a weight of 19.847 tons and a nominal load…

The Yale GDP 160 EC is a diesel forklift manufactured by Yale from 2012 to 2013. It has a weight of 19.847 tons and a nominal load at the center of gravity of 16 tons. The forklift can lift loads up to a height of 6.7 meters and has a center of gravity at 600 mm. It has a maximum climbing ability of 35 percent and a lowering speed of 0.48 meters per second with a load. The total width of the forklift is 2607 mm and it has a turning radius of 4.584 meters. The construction height of the forklift is 3064 mm.

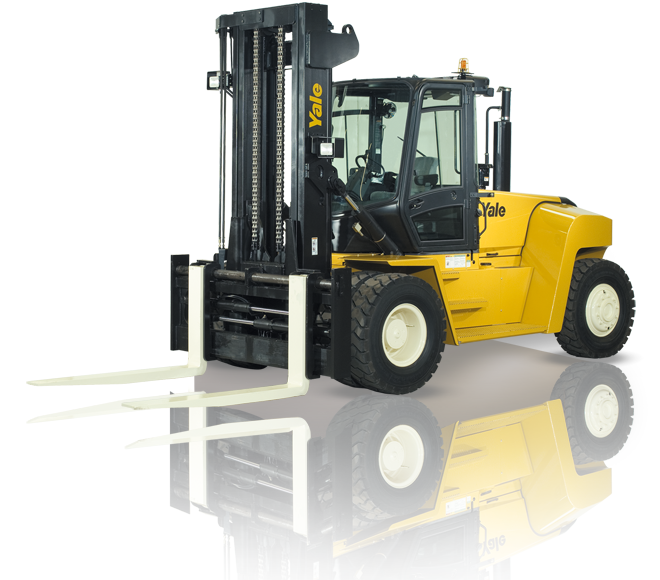

Diesel Forklifts Yale GDP 160 EC
Yale GDP 160 EC Dimensions and Size
Diesel Forklifts Yale GDP 160 EC
Yale GDP 160 EC Dimensions and Size

Visit Yale live at

Technical specs - GDP 160 EC Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
16 t
Centre of gravity
600 mm
Standard tyres
4x/2
Transmission type
HY
Weight
19.847 t
Total width
2607 mm
Construction height
3064 mm
Turning radius
4.584 m
Lifting height
6.7 m
Travel speed with / without load
23.4/27.3 km/h
Hoisting with / without load
0.28/0.42 m/s
Lowering with load
0.48 m/s
max. climbing ability
35 %
Model series
GDP
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
116 kW
Displacement
6.7 l
Revolutions at max torque
2000 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
