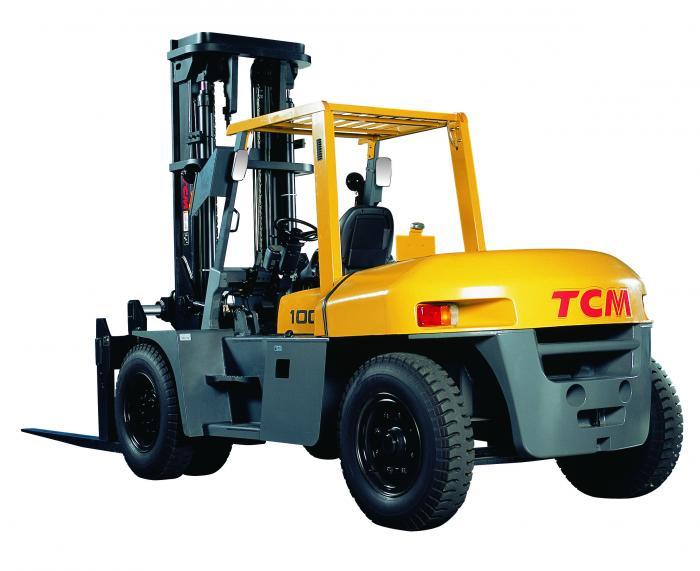

FD 100-2 TCM diesel forklift specs & dimensions (2007 - 2015)

Name: TCM FD 100-2 Diesel Forklifts
Brand: TCM

The TCM FD 100-2 is a diesel forklift manufactured by TCM from 2007 to 2015. It has a weight of 12.53 tons and a nominal load capa…

The TCM FD 100-2 is a diesel forklift manufactured by TCM from 2007 to 2015. It has a weight of 12.53 tons and a nominal load capacity of 10 tons at the center of gravity. The forklift can lift loads up to a height of 3 meters, with a center of gravity at 600 mm. It has a total width of 2245 mm and can travel at a speed of 32 km/h with or without a load. The turning radius of the forklift is 3.88 meters, and its construction height is 2640 mm.

FD 100-2

Years of manufacture: 2007—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

Technical specs - FD 100-2 TCM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 10 t

Centre of gravity: 600 mm

Standard tyres: P 4/2

Transmission type: W

Weight: 12.53 t

Total width: 2245 mm

Construction height: 2640 mm

Turning radius: 3.88 m

Lifting height: 3 m

Travel speed with / without load: 32 km/h

Model series: Alpha

Engine manuf.: Isuzu

Engine type: 4 HK 1 TC

Engine power: 87 kW

More technical details, like: hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
