R 70-16 Still diesel forklift specs & dimensions (1997 - 2007)

Model rating
6,50 / 10

The Still R 70-16 is a diesel forklift manufactured by Still from 1997 to 2007. It has a weight of 2.72 tons and a nominal load at…

The Still R 70-16 is a diesel forklift manufactured by Still from 1997 to 2007. It has a weight of 2.72 tons and a nominal load at the center of gravity of 1.6 tons. The forklift can lift loads up to a height of 3.98 meters and has a center of gravity at 500 millimeters. It has a maximum climbing ability of 27 percent and a total width of 1084 millimeters. The turning radius of the forklift is 1.927 meters and it has a construction height of 2210 millimeters.

Diesel Forklifts Still R 70-16

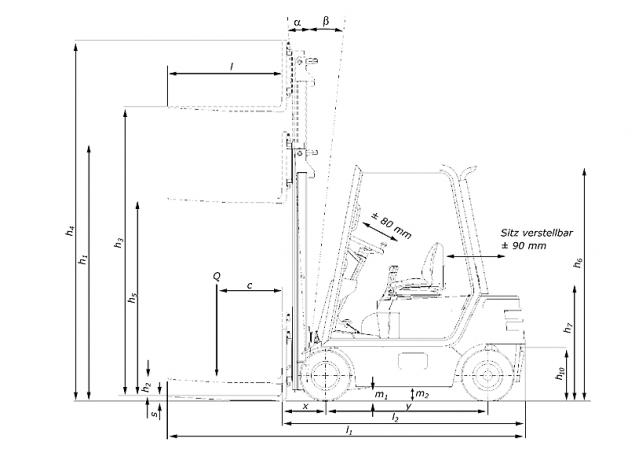

Still R 70-16 Dimensions and Size
Diesel Forklifts Still R 70-16
Still R 70-16 Dimensions and Size

Technical specs - R 70-16 Still

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.6 t
Centre of gravity
500 mm
Standard tyres
SE/L 2x/2
Transmission type
EW
Weight
2.72 t
Total width
1084 mm
Construction height
2210 mm
Turning radius
1.927 m
Lifting height
3.98 m
Travel speed with / without load
22/22 km/h
Hoisting with / without load
0.54/0.58 m/s
Lowering with load
0.6/0.45 m/s
max. climbing ability
27 %
Model series
R
Engine manuf.
VW
Engine type
ADG
Engine power
30 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
