XD 20 OM diesel forklift specs & dimensions (2004 - 2007)

The OM XD 20 Diesel Forklift, manufactured from 2004 to 2007, has a weight of 3.14 tons. It can handle a nominal load of 2 tons at…

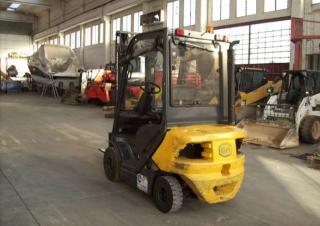

The OM XD 20 Diesel Forklift, manufactured from 2004 to 2007, has a weight of 3.14 tons. It can handle a nominal load of 2 tons at the center of gravity, which is located 500mm from the ground. The forklift has a total width of 1150mm and a construction height of 2095mm.

Diesel Forklifts OM XD 20

Technical specs - XD 20 OM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
L/SE 4
Transmission type
W
Weight
3.14 t
Total width
1150 mm
Construction height
2095 mm
Model series
XD
Engine manuf.
Lombardini
Engine type
LDW 2204 B4
Engine power
32 kW

More technical details, like: turning radius, lifting height, travel speed with / without load, hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
