FD100N Mitsubishi diesel forklift specs & dimensions (2008 - 2018)

Name: Mitsubishi FD100N Diesel Forklifts
Brand: Mitsubishi

The Mitsubishi FD100N is a diesel forklift manufactured from 2008 to 2018. It has a weight of 14.8 tons and a nominal load at the …

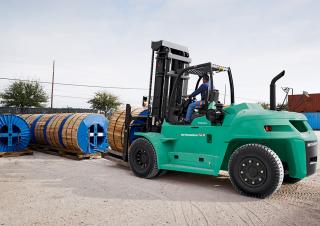

The Mitsubishi FD100N is a diesel forklift manufactured from 2008 to 2018. It has a weight of 14.8 tons and a nominal load at the center of gravity of 10 tons. The forklift can lift loads up to a height of 4 meters and has a center of gravity at 600 mm. It has a maximum climbing ability of 38 percent and a total width of 2515 mm. The turning radius of the forklift is 3.99 meters and its construction height is 3590 mm.

FD100N

Years of manufacture: 2008—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - FD100N Mitsubishi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 10 t

Centre of gravity: 600 mm

Standard tyres: L4x/2

Weight: 14.8 t

Total width: 2515 mm

Construction height: 3590 mm

Turning radius: 3.99 m

Lifting height: 4 m

Travel speed with / without load: 24/39 km/h

Hoisting with / without load: 0.46/0.48 m/s

Lowering with load: 0.46/0.5 m/s

max. climbing ability: 38 %

Model series: FD

Engine manuf.: Mitsubishi

Engine type: 6 M 60

Engine power: 110 kW

More technical details, like: transmission type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Mitsubishi FD100N overview

Drive

Powerful Mitsubishi 6M60-TL diesel engine produces high output and torque for increased productivity. Common rail technology in combination with electronically controlled fuel injection system, turbo charger, intercooler, exhaust gas recirculation and oxidation catalyst ensures conformity with emissions regulations 97/68/EC amended by 2004/26/EC. Powerful cooling system with efficient cores and radiator ensures excellent temperature control. In-house manufacture of entire drive train ensures perfect compatibility of engine, transmission and front axle. Heavy duty auto-shift transmission through clutches via torque converter, inching, together with reliable design, ensures trouble-free operation.

Hydraulics

Dependable hydraulic system uses gear-type hydraulic pump and optimised component layout to reduce hydraulic path and heat build-up in chassis – for higher efficiency. High-performance hydraulic breather ensures no vulnerable components in harsh applications.

Electrical and control systems

CAN-bus system together with 2-way data management links truck’s electronic control units and simplifies diagnostics. Integrated Presence System ensures parking brake and seat switch are applied, hydraulic functions locked and travel interlock system for added safety.
