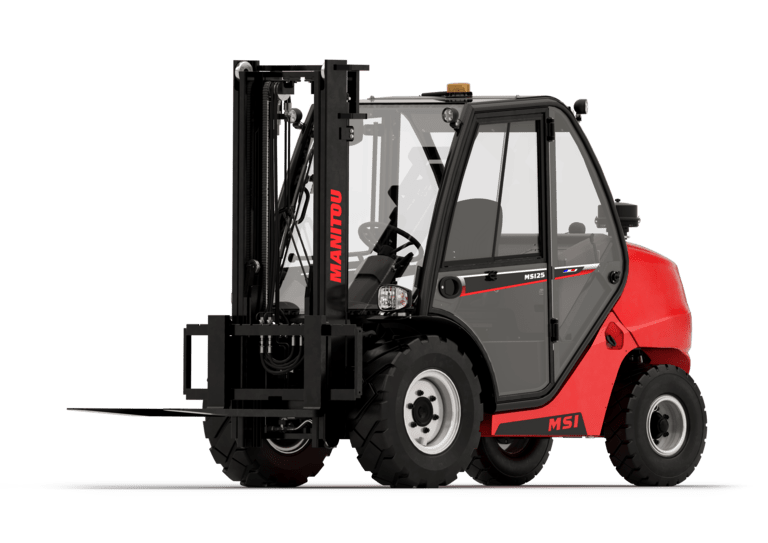

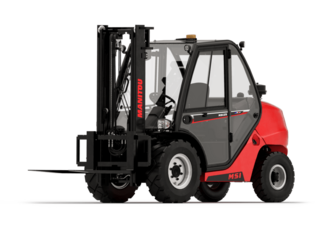

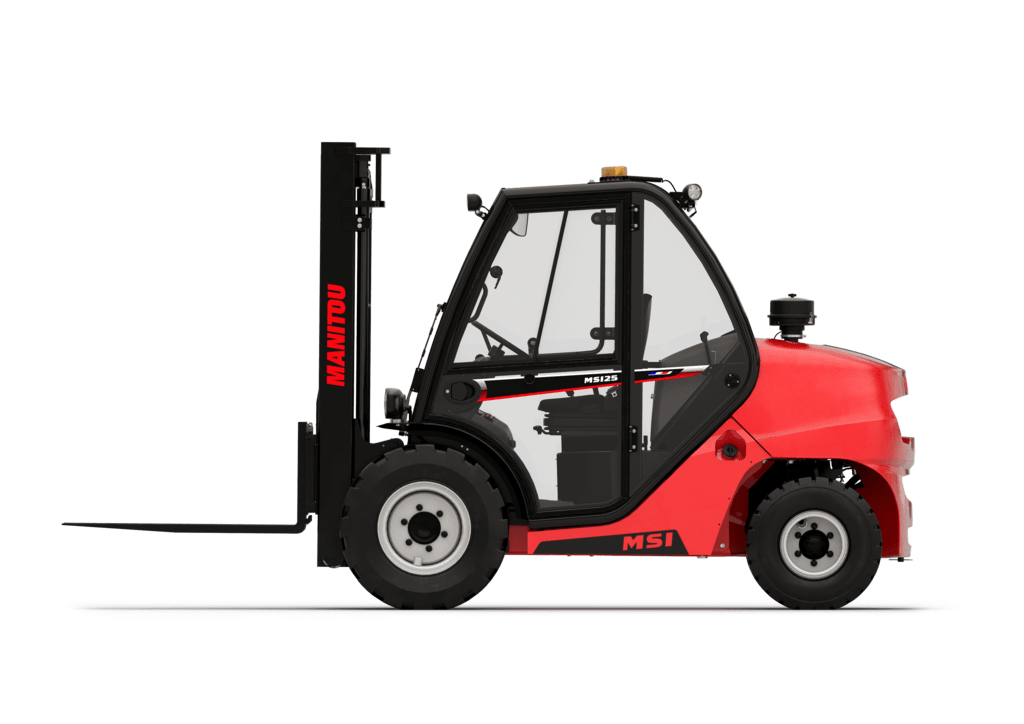

MSI 25 T Manitou diesel forklift specs & dimensions (2021 - 2026)
.png)
.jpg)
.png)
.jpg)
Visit Manitou live at
Technical specs - MSI 25 T Manitou
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2.5 t
- Centre of gravity
- 500 mm
- Standard tyres
- 300-15/18 6R P43 / 7.00-12/12 ED Plus
- Transmission type
- HY
- Weight
- 3.9 t
- Total width
- 1330 mm
- Construction height
- 2095 mm
- Turning radius
- 2.62 m
- Lifting height
- 3.3 m
- Travel speed with / without load
- 21 km/h
- Hoisting with / without load
- 0.5 m/s
- Lowering with load
- 0.5/0.3 m/s
- max. climbing ability
- 31 %
- Model series
- MSI
- Engine manuf.
- Kubota
- Engine type
- D1803 CRT E5B
- Engine power
- 37 kW
- Displacement
- 1.826 l
- Revolutions at max torque
- 2700 rpm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
