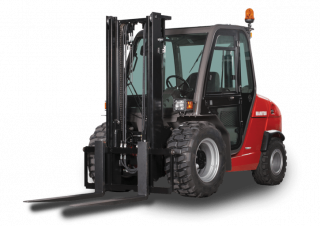

MSI 25 3B / FT4 Manitou diesel forklift specs & dimensions (2019 - 2021)

The Manitou MSI 25 3B / FT4 is a diesel forklift manufactured from 2019 to 2021. It has a weight of 4.07 tons and a nominal load a…

The Manitou MSI 25 3B / FT4 is a diesel forklift manufactured from 2019 to 2021. It has a weight of 4.07 tons and a nominal load at the center of gravity of 2.5 tons. The lifting height reaches up to 3.3 meters, with a center of gravity at 500 mm. It has a maximum climbing ability of 32 percent. The total width of the forklift is 1323 mm, and it can travel at a speed of 20 km/h with or without load. The turning radius is 2.545 meters, and the construction height is 2300 mm.

Diesel Forklifts Manitou MSI 25 3B / FT4

Visit Manitou live at

Technical specs - MSI 25 3B / FT4 Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.5 t
Centre of gravity
500 mm
Standard tyres
275/70 R22.5 / 7.00x12 14PR
Transmission type
HY
Weight
4.07 t
Total width
1323 mm
Construction height
2300 mm
Turning radius
2.55 m
Lifting height
3.3 m
Travel speed with / without load
20 km/h
Hoisting with / without load
0.4/0.5 m/s
Lowering with load
0.5/0.4 m/s
max. climbing ability
32 %
Engine manuf.
Kubota
Engine type
V2403 CR TE4
Engine power
48.6 kW
Displacement
2.434 l
Revolutions at max torque
2700 rpm
No. of cylinders
4
Emission level
IV

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
