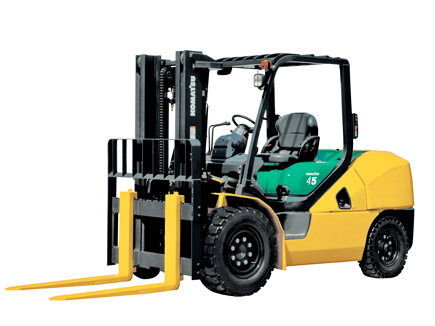

FD45TU-10 Komatsu diesel forklift specs & dimensions (2021 - 2026)

The Komatsu FD45TU-10 is a diesel forklift manufactured since 2021. It has a weight of 6.855 tons and a nominal load at the center…

The Komatsu FD45TU-10 is a diesel forklift manufactured since 2021. It has a weight of 6.855 tons and a nominal load at the center of gravity of 4.5 tons. The lifting height reaches up to 3 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 29 percent. The hoisting speed with load is 0 m/s, and the lowering speed with load is 0.5 m/s. The total width of the forklift is 1450 mm, and it can travel at a speed of 24 km/h with or without load. The turning radius is 2.82 meters, and the construction height is 2250 mm.

Diesel Forklifts Komatsu FD45TU-10

Visit Komatsu live at

Technical specs - FD45TU-10 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4.5 t
Centre of gravity
600 mm
Standard tyres
2x/2
Transmission type
HY
Weight
6.855 t
Total width
1450 mm
Construction height
2250 mm
Turning radius
2.82 m
Lifting height
3 m
Travel speed with / without load
24/25 km/h
Hoisting with / without load
0.47/0.48 m/s
Lowering with load
0.50/0.50 m/s
max. climbing ability
29 %
Model series
FD
Engine manuf.
Komatsu
Engine type
SAA4D95LE-5-A
Engine power
69 kW
Displacement
3.26 l
Revolutions at max torque
1600 rpm
Max. torque
343 Nm
No. of cylinders
4
Emission level
Tier 3

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
