DCG50-6 Kalmar diesel forklift specs & dimensions (2016 - 2021)

Name: Kalmar DCG50-6 Diesel Forklifts
Brand: Kalmar

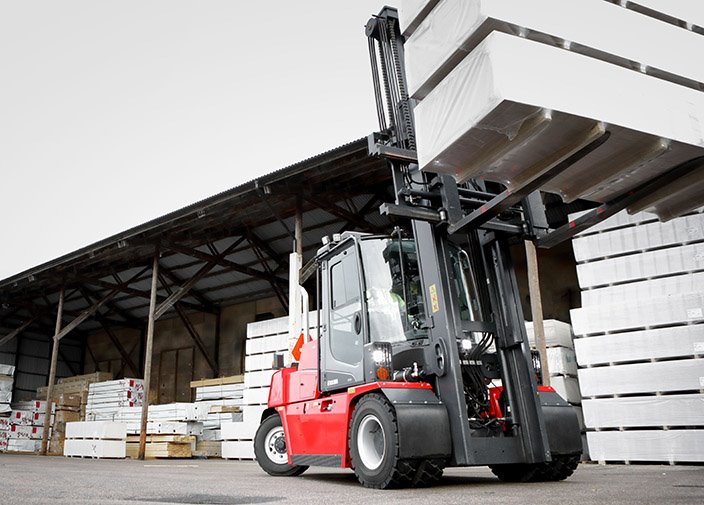

The Kalmar DCG50-6 is a diesel forklift manufactured from 2016 to 2021. It has a weight of 8.3 tons and a nominal load at the cent…

The Kalmar DCG50-6 is a diesel forklift manufactured from 2016 to 2021. It has a weight of 8.3 tons and a nominal load at the center of gravity of 5 tons. The lifting height reaches up to 3.5 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 31 percent. The total width of the forklift is 1550 mm, and it has a turning radius of 2.85 meters. The construction height is 2570 mm.

DCG50-6

Years of manufacture: 2016—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DCG50-6 Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 5 t

Centre of gravity: 600 mm

Standard tyres: 2x2

Transmission type: W

Weight: 8.3 t

Total width: 1550 mm

Construction height: 2570 mm

Turning radius: 2.85 m

Lifting height: 3.5 m

Travel speed with / without load: 21/22 km/h

Hoisting with / without load: 0.35/0.37 m/s

Lowering with load: 0.49/0.42 m/s

max. climbing ability: 31 %

Model series: DCG

Engine manuf.: AGCO Power

Engine type: 44 AWF

Engine power: 85 kW

Revolutions at max torque: 2200 rpm

Max. torque: 425/1500 Nm

No. of cylinders: 4

Emission level: IV

More technical details, like: dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
